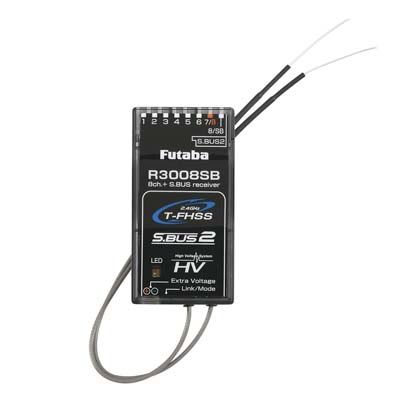

Futaba R3008SB T-FHSS S.Bus2 Telemetry Receiver

The Futaba R3008SB is an 8-channel T-FHSS Air 2.4GHz receiver designed for Futaba aircraft radio systems. It provides conventional PWM outputs together with S.Bus and S.Bus2 connectivity, allowing compatibility with conventional servos as well as Futaba S.Bus/S.Bus2 equipment and telemetry sensors. The receiver features dual-antenna diversity and an extra voltage input for monitoring battery voltage through a compatible transmitter.

Key Specifications

• Brand: Futaba
• Model: R3008SB
• Protocol: T-FHSS Air 2.4GHz
• Channels: 8 conventional channels
• S.Bus: Yes
• S.Bus2: Yes
• Telemetry: Yes
• Antenna: Dual antenna diversity
• Size: 24.9 × 47.3 × 14.3 mm
• Weight: 10.1g
• Rated voltage: 4.8–7.4V
• Operating voltage: 4.0–8.4V
• Extra voltage input: 0–70V DC

Important: The R3008SB is a T-FHSS Air receiver and requires a compatible Futaba T-FHSS Air transmitter. It is not compatible with Futaba S-FHSS, FHSS, FASST or FASSTest systems.
