FrSky TDR6 Dual-Band Receiver (2.4GHz & 900MHz) — FrSky TDR6 Dual-Band Receiver 2 4GHz crafted for enthusiasts who demand performance and reliability. Ideal for pilots looking to upgrade their rig with confidence.
Key Features
- durable covering film
- UV resistant
Includes 3 high-resolution images to help you inspect every detail.
Benefits
- Enhances performance and reliability for demanding setups.
- Built from materials that last season after season.
- Easy compatibility with common RC components.

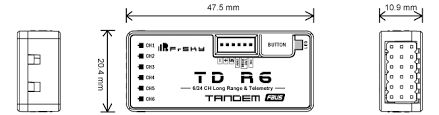

The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 2.4Ghz and 900Mhz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance. The Tandem series receivers adopt a dual-band antenna design (2.4GHz & 900MHz) that provides multi-directional wide coverage for the remote signal. The telemetry data (Power & Signal related) can be recorded using the built-in black box module within the Tandem receiver, useful for capturing data from any unusual status during the flight. TD R6 receiver offers 6 PWM channel outputs and is bundled in a compact lightweight design, the receiver also provides two of 3-pin ports accordingly for SBUS Out and FBUS/S.Port. By setting the S.Port to the FBUS protocol, the TD receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the build setup. Features: Simultaneous working 2.4G&900M dual-band TD mode Dual-band antenna design for multi-directional coverage Compact lightweight design Black Box function 4ms race mode with telemetry Long control range (up to 50KM – 100KM) Over-The-Air (OTA) FW update 6 PWM channel ports FBUS / S.Port SBUS Out (Supports 16CH / 24CH mode) Specifications: Frequency: 2.4GHz & 900MHz Dimension: 47.5 x 20.4 x 10.9mm (L*W*H) Weight: 11.5g Operating Voltage: 3.5-10V(recommend 3.7-8.4V) Operating Current: ≤110mA@5V Compatibility: TANDEM series radio & RF module in TD mode. 2.4G/900M antenna connector: IPEX1 Voltage Measurement Range via AIN2 (External device): 0-30V Shipping/ GST added at checkout.
Ready to take your setup to the next level? Add the FrSky TDR6 Dual-Band Receiver (2.4GHz & 900MHz) to your cart today and experience the difference.
