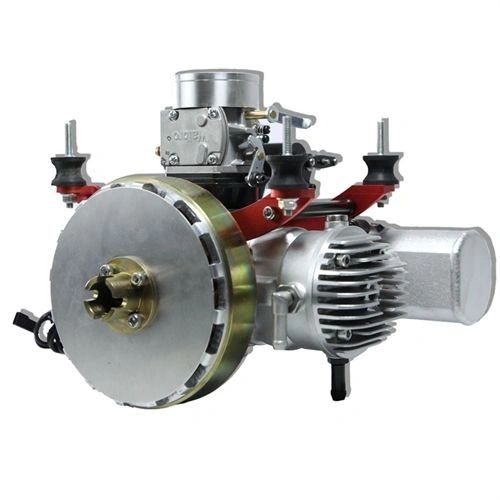

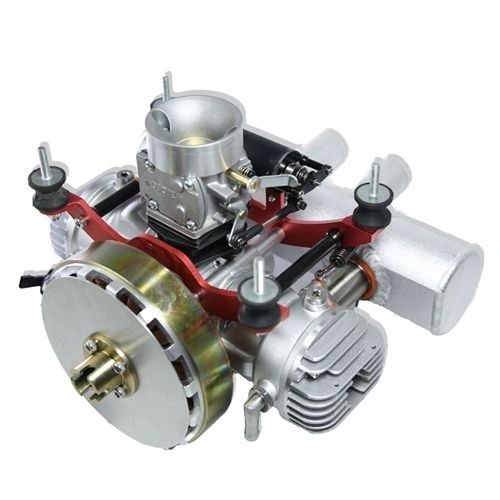

Introducing the DLE128HD Drone Engine 7.4kw Water-Cooled Hybrid Electricity Generator Gasoline Engine Electric Kit, a compact powerhouse built to deliver consistent results in every flight. Perfect balance of performance and dependability.
Key Features
- high-power brushless motor
- high efficiency
- smooth throttle response
Includes 6 high-resolution images to help you inspect every detail.
Benefits
- Built from materials that last season after season.
- Easy compatibility with common RC components.
- Enhances performance and reliability for demanding setups.

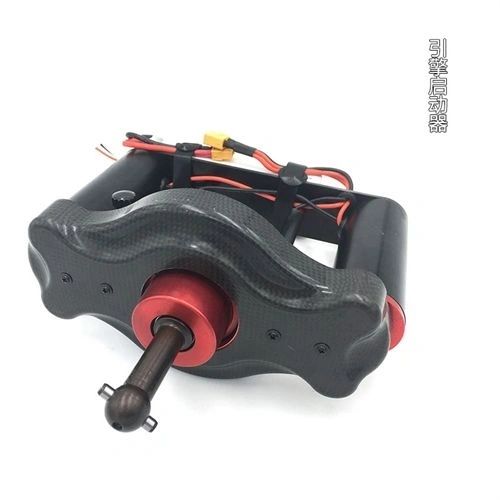

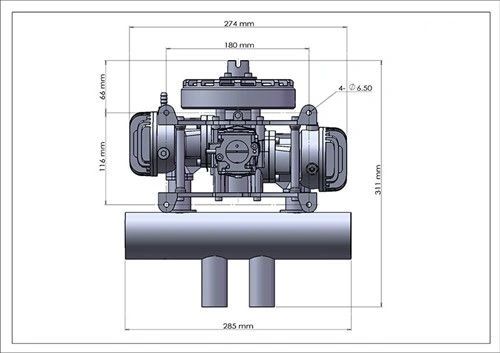

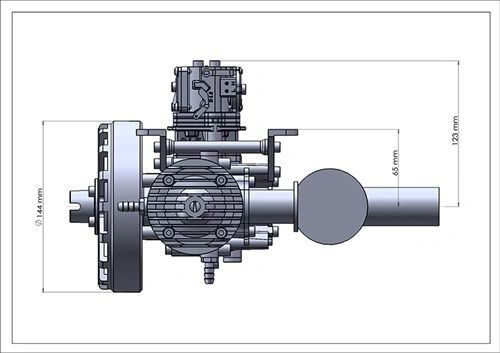

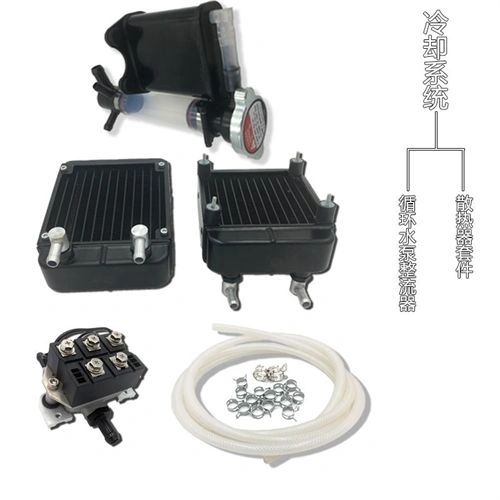

Engine parameters Horizontally opposed double cylinder water cooling Displacement: 128cm 3 Cylinder bore × Stroke: 47mm × 35mm Power: 12HP / 8300 rpm Idle speed: 3500-6000 rpm Engine weighs 6.2kg Cooling system: 2kg (including 800ml coolant) Generator parameters Three phase permanent magnet generator voltage: ac50v, rectifier is dc50v Frequency: non fixed frequency type, changing with engine speed, frequency following changes power: 7.4kw Starting mode: external handheld starter, power 1000W, user needs to install 3s12v lithium battery capacity 3300MA-4200MA。 Ignition mode: 12vcdi DC ignition, power 4W Circulating water pump: DC12V, power 15W Throttle controller: DC12V, power 1W Spark plug model: CMR 6m, please use M14 special sleeve tool to remove and tighten the spark plug The torque is 7-8n / m. please insert the high-pressure cap with force. The spark plug can't be seen when it is installed in place When using the high pressure cap, please gently pry the stainless steel Shell flanging with a slotted screwdriver Fuel: ordinary vehicle gasoline is mixed with special lubricating oil for 2-stroke engine. The mixing ratio is 30:1 (30 l gasoline to 1 l lubricating oil). Please do not change the above ratio by yourself. Recommended lubricant brands: Total 2T, motor 710, torco gp-7, mercury TCw. It is forbidden to mix different brands of lubricants. Engine operating temperature - 20 ℃ /50 ℃ Waterproof grade: IP43
Ready to take your setup to the next level? Add the DLE128HD Drone Engine 7.4kw Water-Cooled Hybrid Electricity Generator Gasoline Engine Electric Kit to your cart today and experience the difference.
