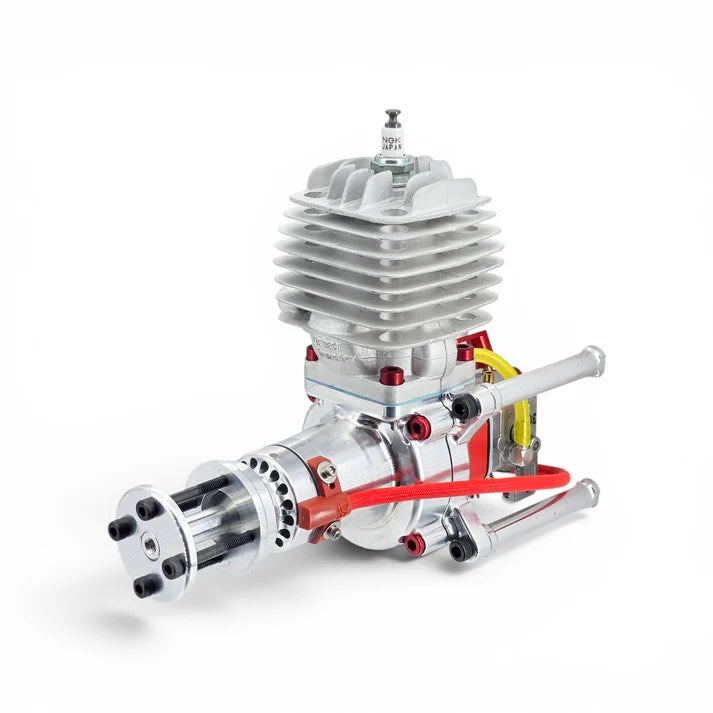

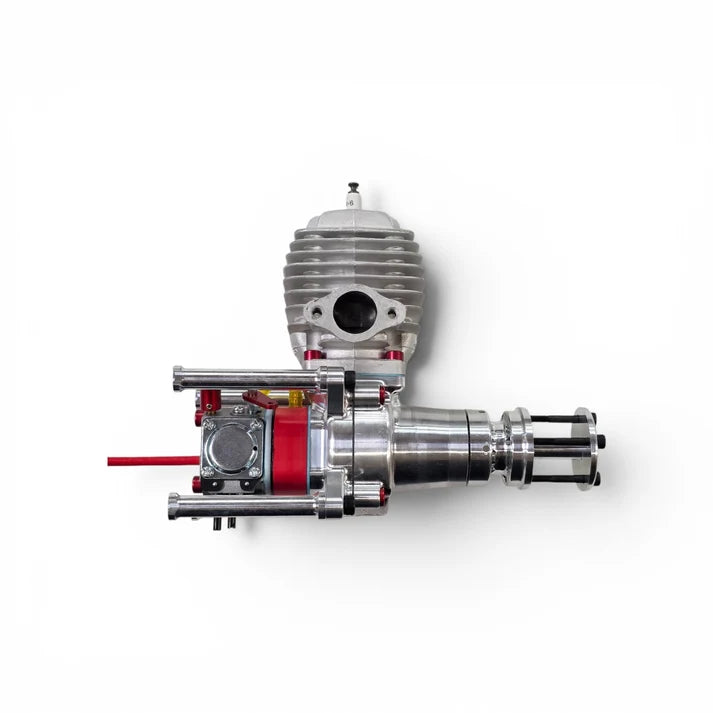

DA-35 Desert Aircraft Engine with Pitts Muffler

The Desert Aircraft DA-35 is a 35cc gasoline engine designed for 30–40cc RC aircraft, combining strong throttle response, a broad powerband and lightweight construction in a compact package.

This version is supplied with a Pitts Muffler, making it an excellent choice for installations where a compact wraparound exhaust is preferred, particularly where cowling clearance and a clean installation are important.

The DA-35 features an electronic ignition system, Walbro carburetor and CNC-machined 7075 aluminium crankcase, with a proven low-vibration design for sport, aerobatic and scale aircraft.

Key Features

• Genuine Desert Aircraft DA-35
• 35cc single-cylinder gasoline engine
• Supplied with Pitts Muffler
• Designed for 30–40cc RC aircraft
• Electronic ignition with Safe Start technology
• Walbro carburetor
• CNC-machined 7075 aluminium crankcase
• Low-vibration design
• Broad aerobatic power curve
• Suitable for sport, aerobatic and scale aircraft

Specifications

• Engine: Desert Aircraft DA-35
• Displacement: 35cc (2.14 cu in)
• Weight: 935g / 2.06lb
• RPM range: 1,500–8,200 RPM
• Bolt circle: 29mm
• Prop bolts: 4mm
• Recommended aircraft: 30–40cc class
• Exhaust: Pitts Muffler
• Warranty: 3 years

Recommended Propellers

2-Blade:

• 19×10
• 20×8
• 20×9

3-Blade:

• 18×10
• 19×11 Narrow

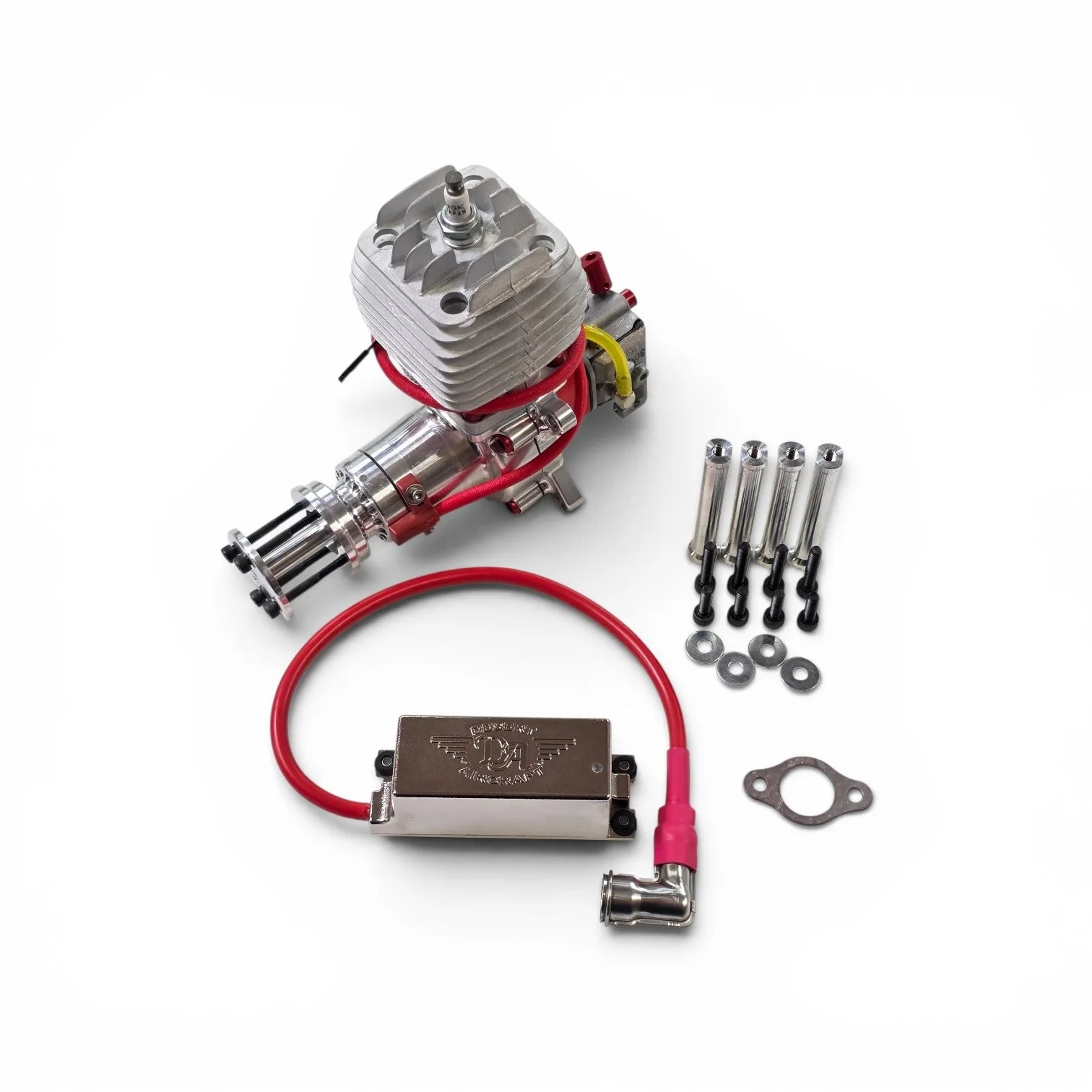

Package Includes

• DA-35 engine with carburetor
• V2 single ignition module
• NGK CM6 spark plug
• Exhaust gasket
• 4 × 66.80mm standoffs
• 4 × M4×40 prop bolts
• Prop washer
• Pitts Muffler
