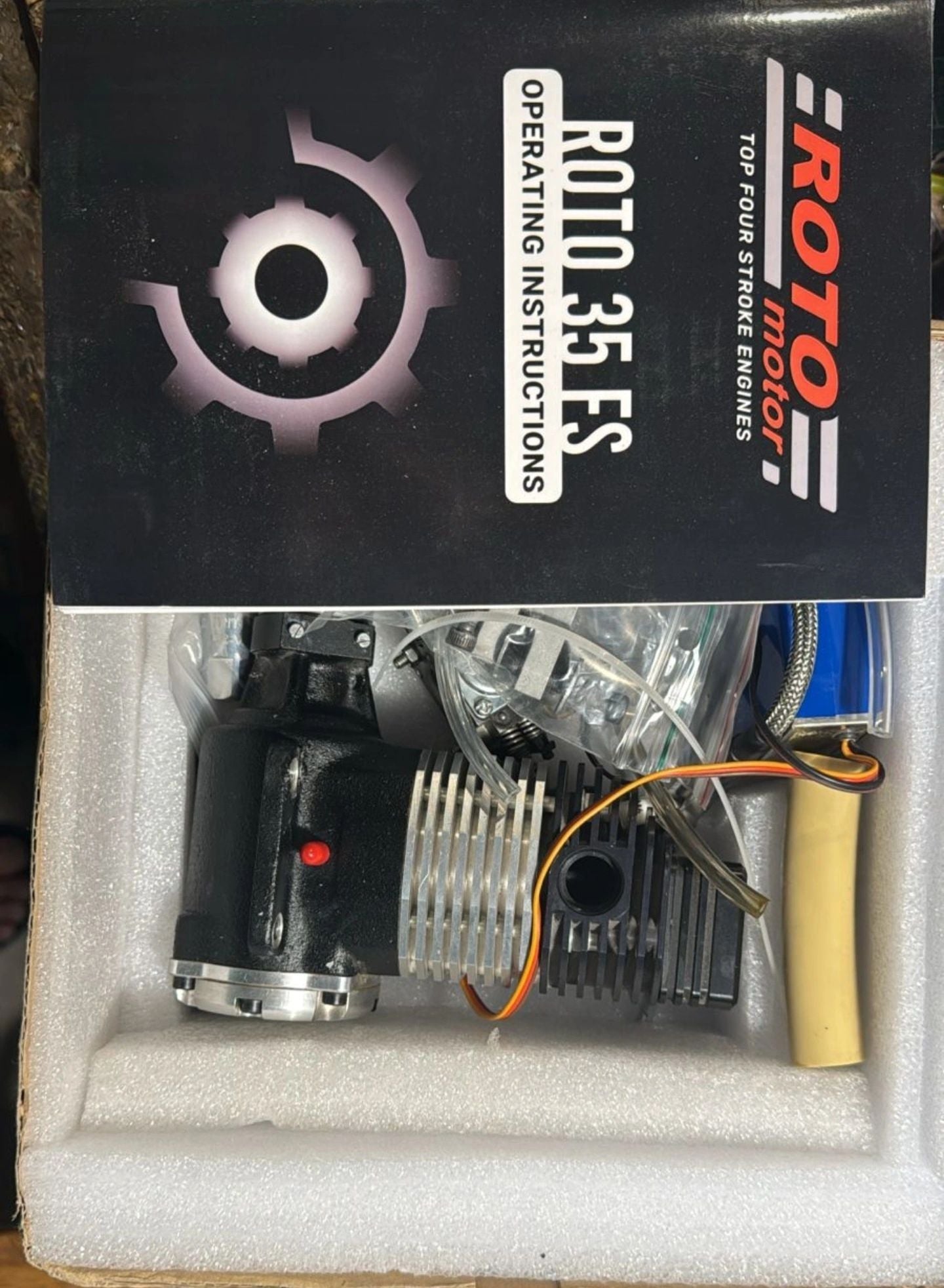

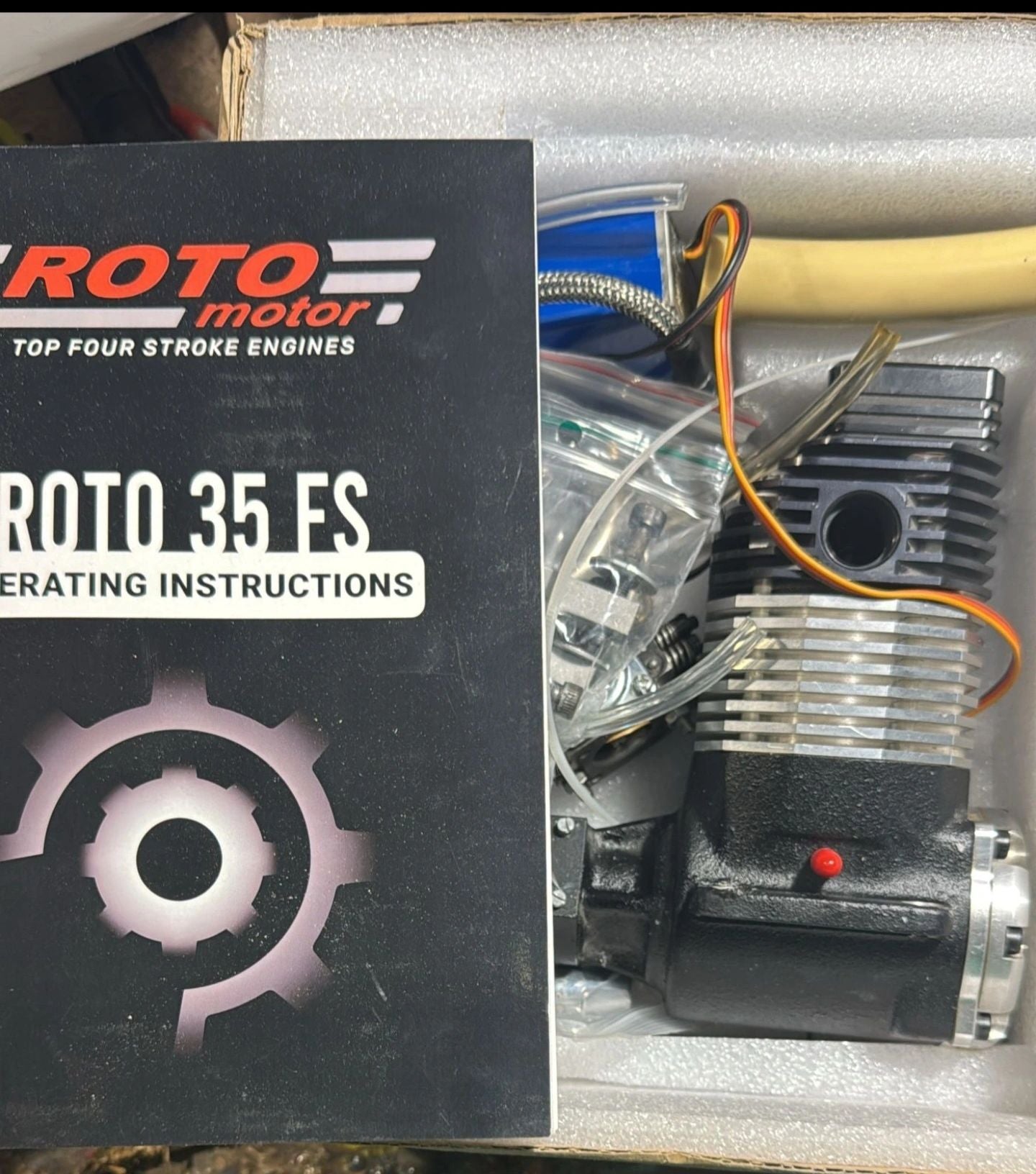

ROTO 35 FS is single cylinder 4 stroke gasoline engine made for RC model airplanes up to 3.5 m and 12 kg. Engine
-
Crank case – it is rough-worked of the cast at the CNC milling cutter. After that it is covered or slashed with a special colour.
-
Cylinder – it is made of one piece of dural with pressed insole from the mild-granular cast iron, it is sharpened and honed to the correct size.
-
Piston – it is casted from silicon alloy with one sealing circle. The aparature for the bung 8 mm is honed.
-
Piston rod – it is forging, which is completely worked. Two needle focuses are moulded into piston rod, it is made for the piston and cranked bung.
-
Crank shaft – it is made of one piece of steel, it is cemented and hardened and it is completely sharpened.
-
Back lid of the engine – it is worked casting, in which is hardened and sharpened rolled slide - valve layed.
Pieces of engine are after clearing by the scan pieced together in preparations at the special workplace.
