RadioMaster TX16S MK3 MAX M2 ELRS
The RadioMaster TX16S MK3 MAX M2 ELRS is the flagship version of the TX16S platform, designed for demanding RC pilots who want premium gimbals, advanced dual-band ExpressLRS connectivity and the full flexibility of EdgeTX.
The M2 ELRS version features dual-band Gemini ExpressLRS using 2.4GHz and Sub-G 900MHz, providing a highly reliable control link for RC airplanes, helicopters, drones and other advanced RC applications.
The TX16S MK3 MAX combines the powerful STM32H7 processor, large 5-inch IPS touchscreen and premium AG02 CNC Hall-sensor gimbals with a full-size 16-channel radio layout.

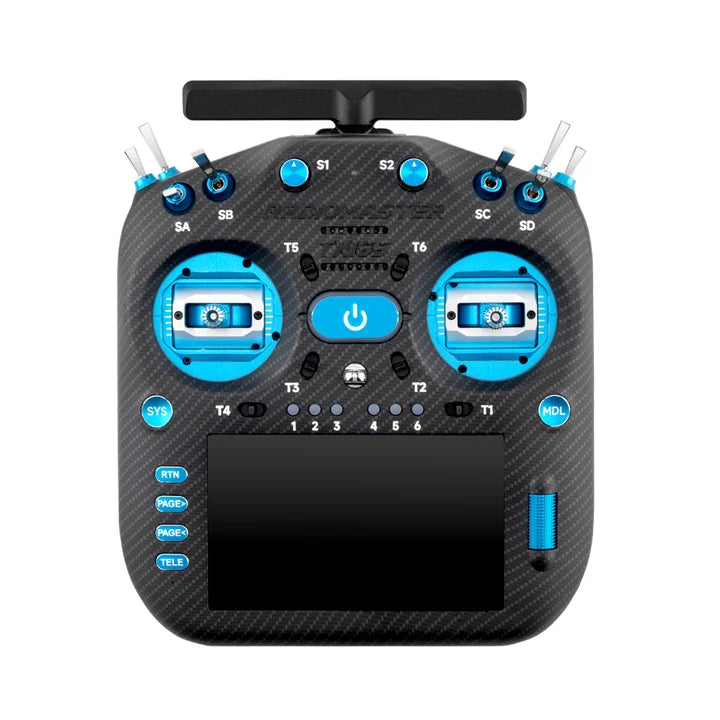

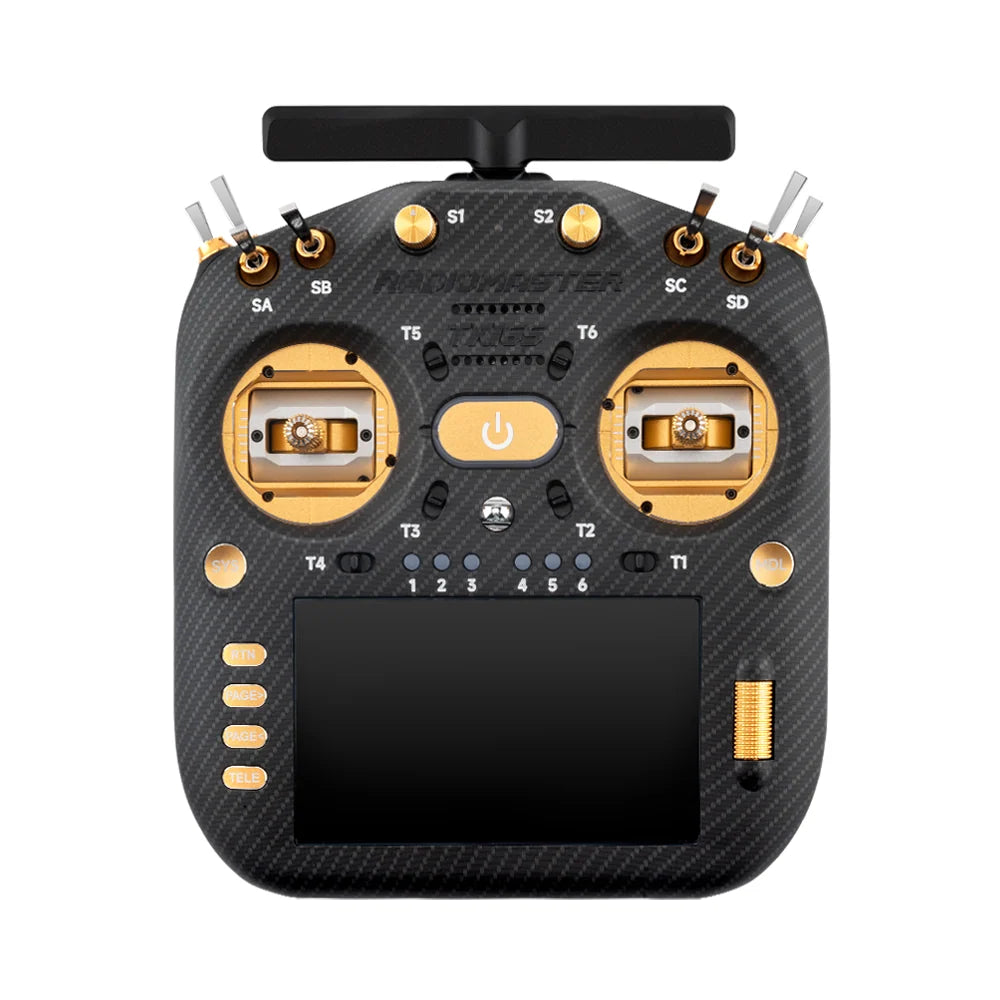

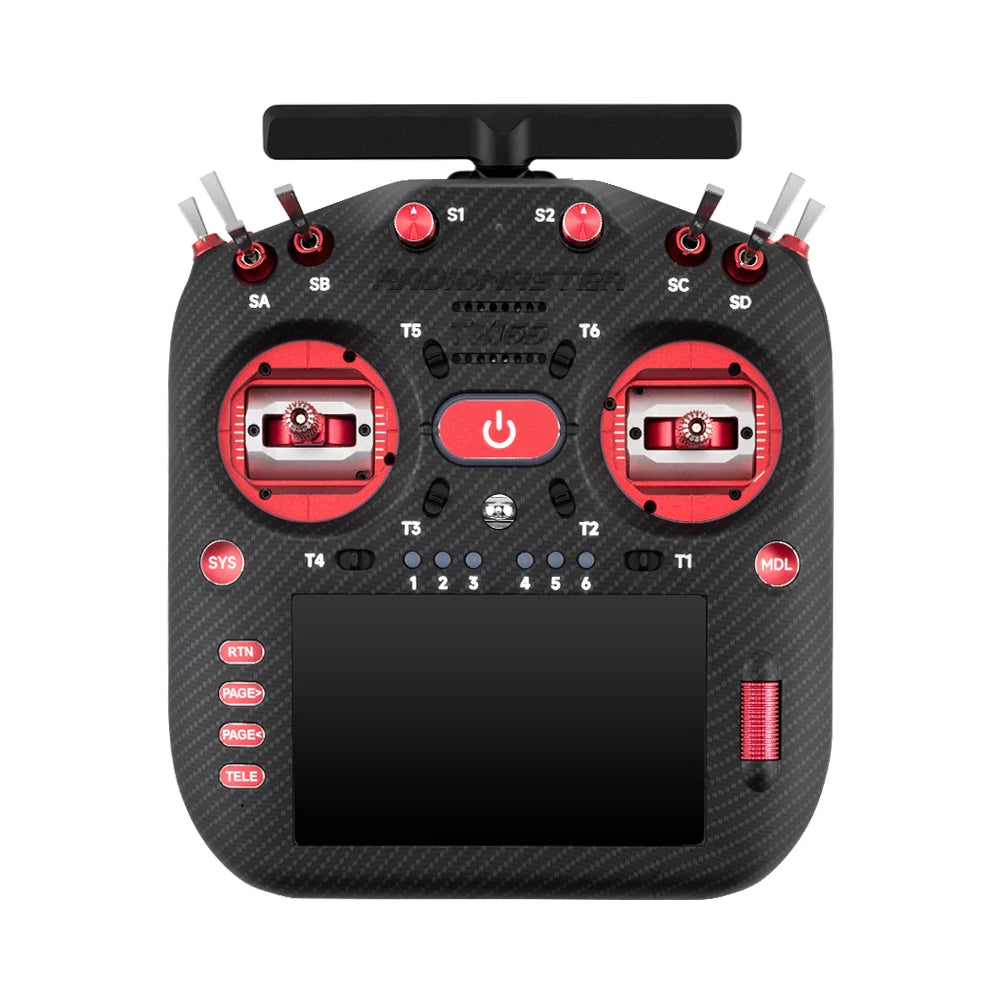

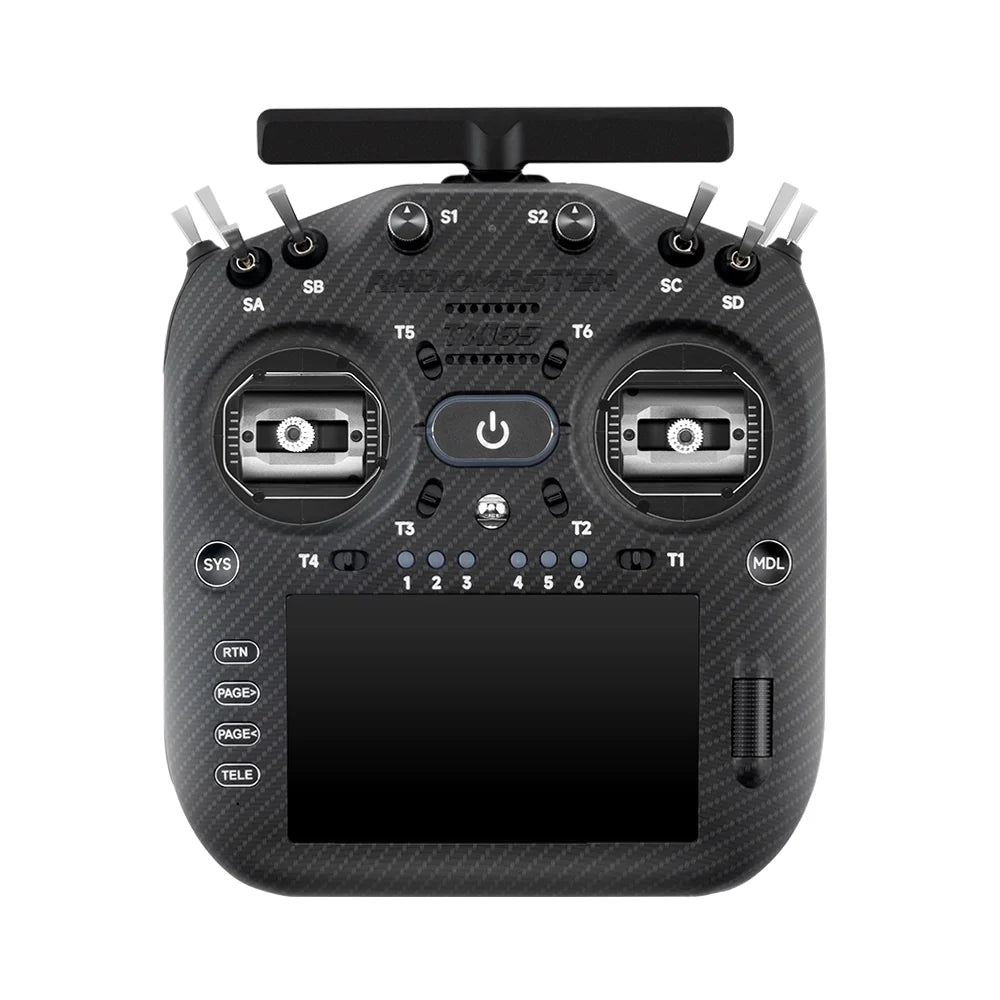

Available in Black, Red, Blue and Gold. Select your preferred colour above.
Key Features
- RadioMaster TX16S MK3 MAX
- M2 ELRS dual-band Gemini system
- 2.4GHz + Sub-G 900MHz operation
- Dual LR1121 RF architecture
- Up to 16 channels
- Premium AG02 CNC aluminium Hall-sensor gimbals
- High-performance STM32H7 processor
- 5-inch 800 × 480 IPS touchscreen
- EdgeTX operating system
- Programmable RGB gimbal lighting
- JR-compatible external module bay
- CNC-machined aluminium controls
- Premium MAX edition finish
- Built-in flash memory
- MicroSD card support
- USB Type-C connectivity
Gemini Dual-Band ELRS
The TX16S MK3 MAX M2 uses the dual-band Gemini ExpressLRS system, combining 2.4GHz and Sub-G 900MHz RF operation.
This provides an advanced control-link solution for pilots who require excellent signal reliability and low latency in demanding RC applications.
AG02 CNC Hall-Sensor Gimbals
The TX16S MK3 MAX is equipped with AG02 CNC aluminium Hall-sensor gimbals.
The precision-machined gimbals provide smooth, accurate stick movement and a premium feel, making the TX16S MK3 MAX particularly suited to pilots who demand precise control.
EdgeTX
The TX16S MK3 MAX runs EdgeTX, providing extensive model configuration and programming options for airplanes, helicopters, gliders, multirotors and other RC models.
5-Inch IPS Touchscreen
The large 5-inch 800 × 480 IPS touchscreen provides a clear interface for model setup, telemetry, configuration and radio-system functions.
5. Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Model | TX16S MK3 MAX |
| RF Version | ELRS M2 |
| RF System | Gemini Dual-Band ExpressLRS |
| Frequency | 2.4GHz + Sub-G 900MHz |
| Channels | Up to 16 |
| Gimbals | AG02 CNC Hall Sensor |
| Processor | STM32H7 |
| Display | 5-inch IPS touchscreen |
| Resolution | 800 × 480 |
| Firmware | EdgeTX |
| External Module | JR-compatible |
| Connectivity | USB Type-C |
| Weight | Approx. 864g without battery |
| Colour Options | Black, Red, Blue, Gold |
6. Battery information
This is important because customers frequently ask about it.
Battery
Battery is not included.
The transmitter supports compatible battery configurations such as:
- 2 × 18650 Li-ion
- 21700 Li-ion battery pack
- 2S LiPo battery
Customers should use the battery configuration recommended for the TX16S MK3 MAX.
7. Package contents
Use:
Package Includes
- 1 × RadioMaster TX16S MK3 MAX M2 ELRS transmitter
- 1 × TX16S MK3 carry case
- 1 × 18650 battery tray
- 2 × Replacement shoulder panels
- 1 × USB Type-C cable
- 1 × Screen protector
- 1 × Hex wrench
- Replacement gimbal springs
- Gimbal stick set screws
- Nylon neck strap
- RadioMaster sticker set
- User manual
- Inventory card
