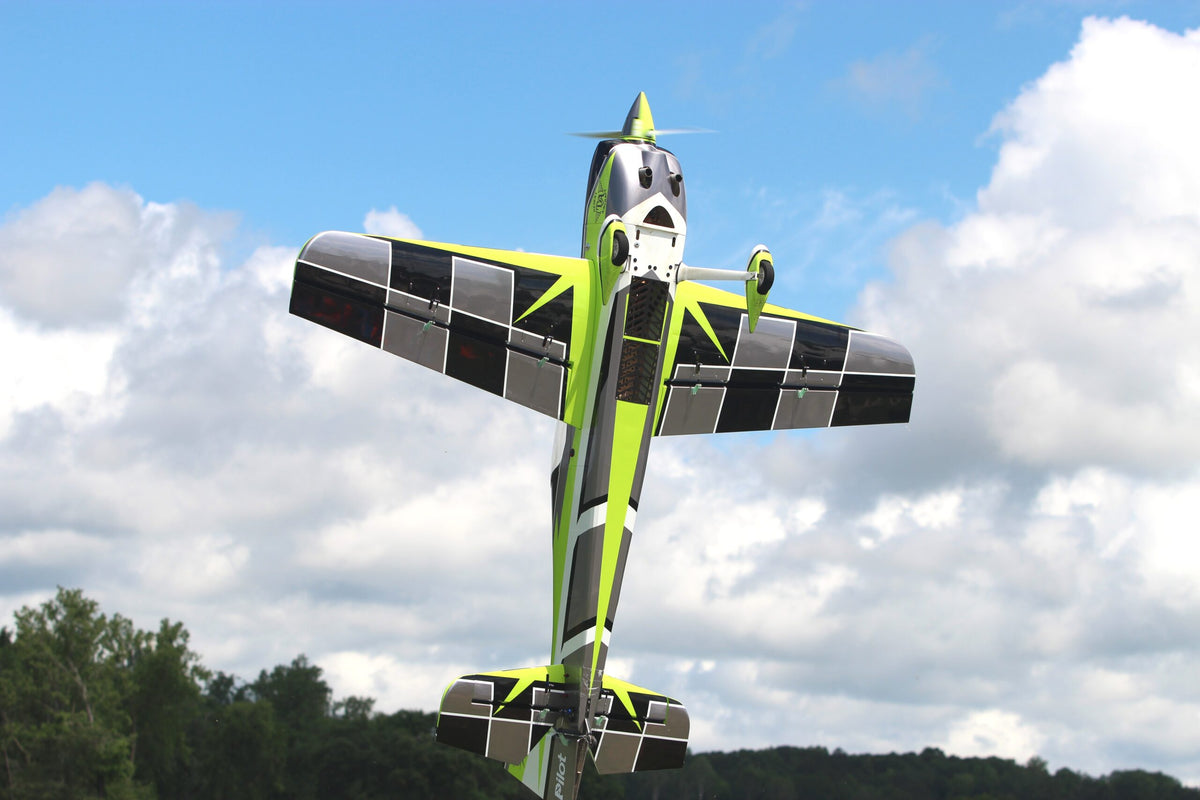

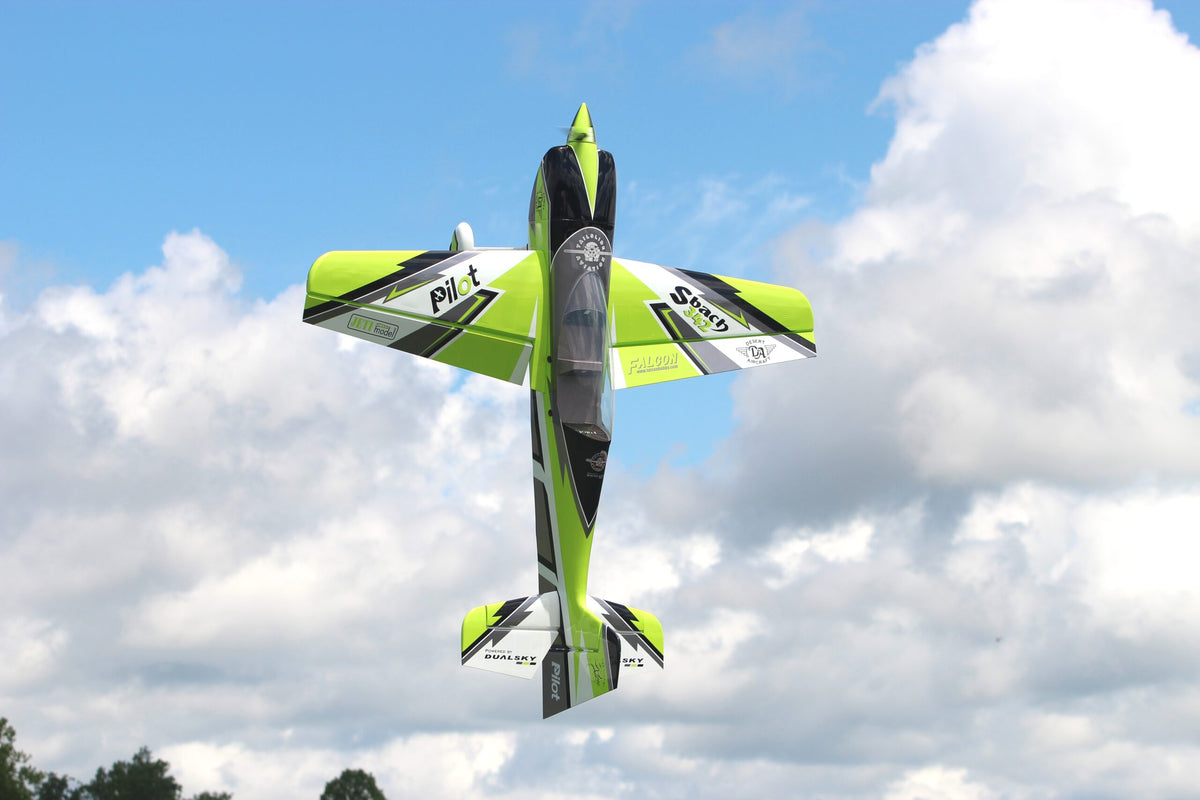

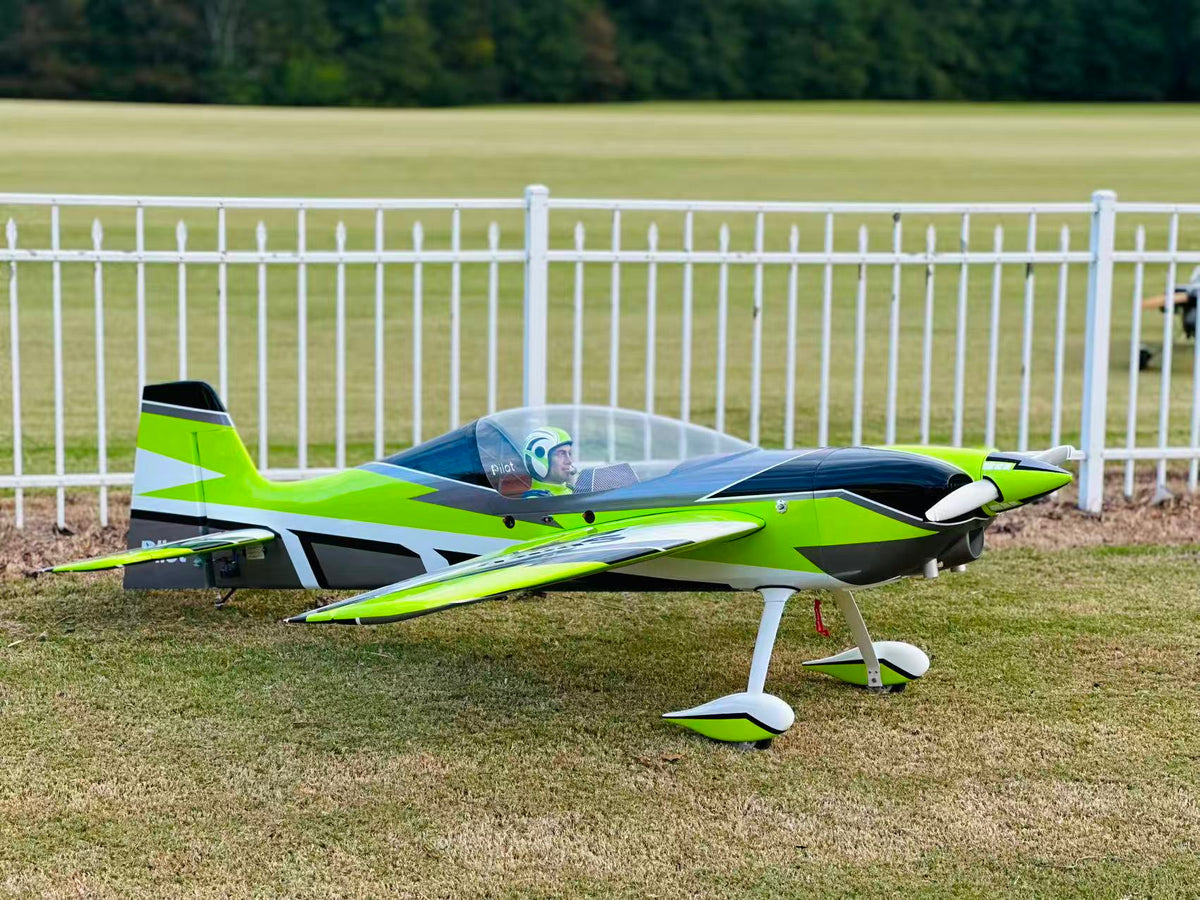

Introducing the new Pilot-RC Sbach342 V2 75" — a next-generation 30–40cc aerobatic aircraft.
The legendary Sbach 342 has been redesigned for the modern era, combining the smooth and predictable flight characteristics of the original 73" Sbach with the precision required for modern Xtreme Aerobatics (XA).
The new Sbach342 V2 75" features a hybrid wood, composite and carbon-fibre construction, with a specially reinforced fuselage and wings. Extensive development and flight testing have been carried out by the Pilot-RC factory team to refine its flight characteristics and deliver outstanding 3D and precision aerobatic performance.
The aircraft is highly prefabricated, making assembly considerably quicker for experienced builders. It also incorporates Pilot-RC's new quick-assembly systems for the wings, stabilizers, SFGs and canopy.
Key Features
- 75" (1.90 m) wingspan
- Designed for 30–40cc petrol engines
- Suitable for an equivalent electric power setup
- Hybrid construction using wood, composite materials and carbon fibre
- Reinforced fuselage and wings
- New patented quick-assembly system for wings, stabilizers and SFGs
- New quick-release canopy system
- Genuine German Oracover (Ultracote) covering
- Highly prefabricated for fast assembly
- Pre-installed, glued and pinned hinges
- Removable wings
- Tool-free quick-release stabilizers
- Internally mounted cowling for a clean appearance
- Laser-engraved motor mounting position
- Easy canister installation
- Pull-pull / pull-push rudder servo system
- Carbon-fibre main undercarriage
- Carbon-fibre spinner
- Pre-mounted canopy
- Pre-prepared fuel tank and fuel tubing
Specifications
| Specification | Details |
|---|---|
| Model | Sbach342 V2 |
| Brand | Pilot-RC |
| Wingspan | 75" (1.90 m) |
| Length | 74" (1.87 m), including 3.5" spinner |
| Wing Area | 1,125 sq in (7,264 cm²) |
| Airframe Weight | 12.3 lb (5.6 kg) |
| Engine Size | 30–40cc petrol |
| Power Option | Equivalent electric power system |
| Type | ARF |
| Colour Scheme | Scheme 10 – Ryu Scheme |
| Lead Time | 4–6 weeks |
Included
The ARF includes:
- Complete airframe
- Carbon-fibre main undercarriage
- Tail-wheel assembly
- Wing tubes
- Fibreglass control horns
- Wheel pants
- Pre-installed hinges
- Pre-mounted canopy
- Fuel tank and pre-prepared fuel tubing
- Fuel dot and breather valve
- Wheels and axles
- Pre-prepared pushrods with ball links
- Matching 3.5" carbon spinner
- Spare lower cowling section for accurate cowling cutting
Required Equipment
The following equipment is not included and must be purchased separately:
- 30–40cc petrol engine or equivalent electric power system
- 5 high-torque servos plus throttle
- Transmitter and receiver
- Propeller
- Batteries
- PowerBox/power management system
- Extension leads
- Other installation accessories as required
Servo configuration:
- 1 servo per aileron
- 2 elevator servos
- 1 rudder servo
- 1 throttle servo
Recommended Pilot-RC Hardware
Pilot-RC recommends:
- Pilot-RC PW28AH high-torque servos for aileron and rudder
- Pilot-RC 21AH 21kg elevator servo
- Pilot-RC 1.6" aluminium servo arms
- Pilot-RC wing bags
Colour Scheme
Colour Scheme 10 – Ryu Scheme
Lead Time
SPECIAL ORDER – LEAD TIME: 4–6 WEEKS
This aircraft is supplied on order. Please allow approximately 4–6 weeks for delivery.
