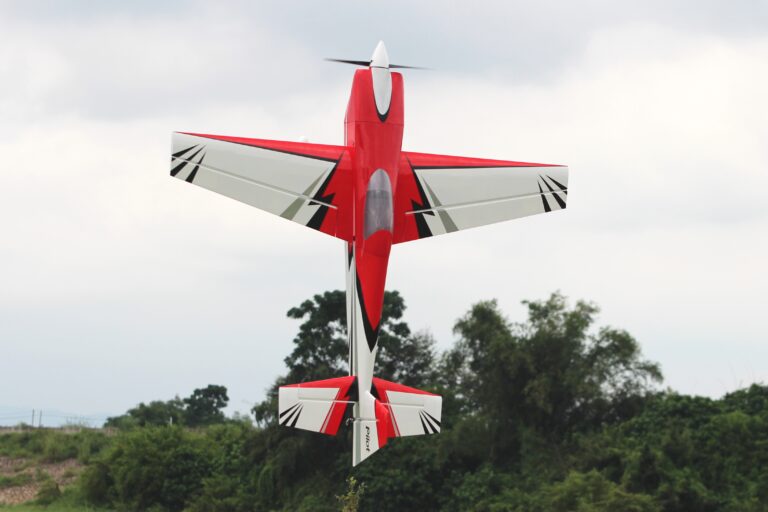

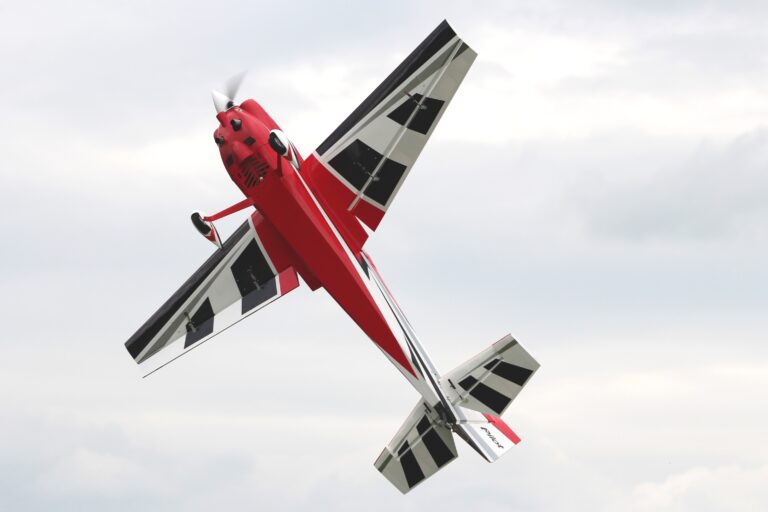

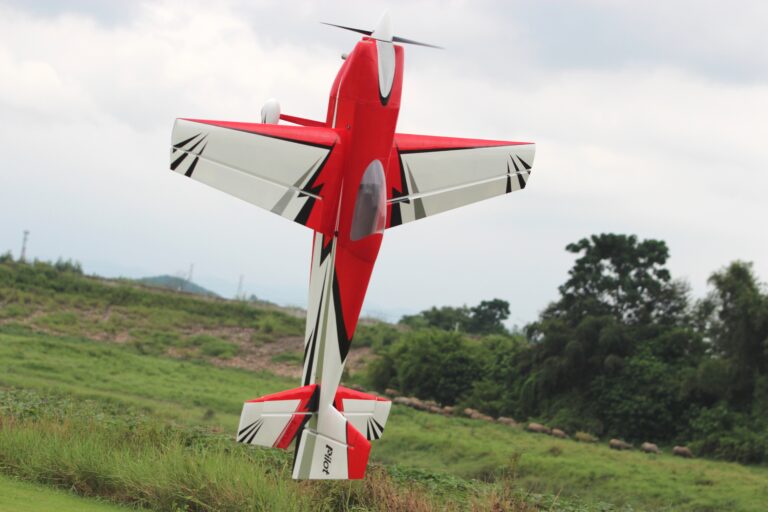

Pilot RC EDGE 540 V3 85"
The Pilot-RC EDGE 540 V3 85" is a high-performance 50–60cc aerobatic ARF aircraft designed for pilots looking for outstanding precision and 3D performance.
Developed by the Pilot-RC design team, the EDGE 540 V3 combines the modern aesthetics of the full-size EDGE 540 V3 with a carefully developed airframe designed for excellent aerodynamic performance and a wide range of flying styles.
The airframe features a hybrid wood and composite construction with specially reinforced fuselage and wings. Pilot-RC's highly prefabricated construction and patented quick-assembly systems make the aircraft considerably quicker and easier to assemble.
The EDGE 540 V3 85" is designed around popular 50–60cc petrol engines and can also be powered by an equivalent electric power system.
Key Features
- 85" (2.16 m) wingspan
- Designed for 50–60cc petrol engines
- Compatible with an equivalent electric power system
- Excellent platform for precision aerobatics and 3D flying
- Modern full-size EDGE 540 V3-inspired design
- Hybrid construction using wood and composite materials
- Specially reinforced fuselage and wings
- Patented quick-assembly system for wings and stabilizers
- Stabilizers require no tools for assembly
- Patented quick-assembly system for canopy
- Genuine German Oracover (Ultracote) covering
- Highly prefabricated construction
- Experienced builders can have the aircraft air-ready in under a day
- Pre-installed, glued and pinned hinges
- Internally mounted cowling with no visible external screws
- Removable wings and stabilizers
- Laser-engraved motor mounting position
- Easy canister installation due to open construction
Specifications
| Specification | Details |
|---|---|
| Brand | Pilot-RC |
| Model | EDGE 540 V3 |
| Wingspan | 85" (2.16 m) |
| Length | 84.6" (2.15 m) with 4" spinner |
| Wing Area | 1,376 sq in (8,880 cm²) |
| Dry Weight | 16.9 lb (7.7 kg) |
| Engine Range | 50–60cc |
| Power Option | Equivalent electric |
| Type | ARF |
| Spinner | 4" carbon fibre |
| Covering | Genuine German Oracover (Ultracote) |
| Colour Scheme | Available as variants |
| Lead Time | 4–6 weeks |
Included Hardware
The ARF kit includes:
- Complete airframe with basic accessories
- Carbon-fibre main undercarriage
- Tail-wheel assembly
- Wing tubes
- Fibreglass control horns
- Wheel pants
- Pre-installed hinges
- Pre-mounted canopy
- Fuel tank
- Pre-prepared fuel tubing
- Fuel dot
- Breather valve
- Wheels
- Axles
- Wheel pants
- Pre-prepared pull-pull wires
- Pushrods with ball links
- Matching 4" carbon-fibre spinner
Required Hardware
Power System
- 50–60cc petrol engine
- OR equivalent electric power system
Servos
- 5–6 high-torque servos
- Minimum 20 kg
- Plus throttle servo
Servo arrangement:
- 1 × servo per aileron
- 1 × servo per elevator
- 1 × servo on rudder
- Throttle servo
Other Required Equipment
The following are not included:
- Transmitter
- Receiver
- Propeller
- Batteries
- PowerBox / power management system
- Extension leads
- Other installation accessories as required
Pilot-RC Recommended Hardware
Servos
Pilot-RC PW37AH
- 37 kg torque
- 0.07 sec
- At 8.4 V
Servo Arms
Pilot-RC 1.6" Aluminium Servo Arms
Included with Pilot-RC servos.
Wing Bags
Pilot-RC Wing Bags
Crash Kits Available
Pilot-RC offers dedicated repair packages for this model:
Landing Gear Repair Package
Includes the wooden parts required to repair damage commonly sustained around the landing gear area.
Front Fuselage Repair Package
Includes the wooden parts required to repair damage commonly sustained around the front of the model.
Note: Additional or alternative spare wood outside the above repair packages is not available to order.
Lead Time
SPECIAL ORDER – LEAD TIME: 4–6 WEEKS
This aircraft is supplied on order. Please allow approximately 4–6 weeks for delivery.
