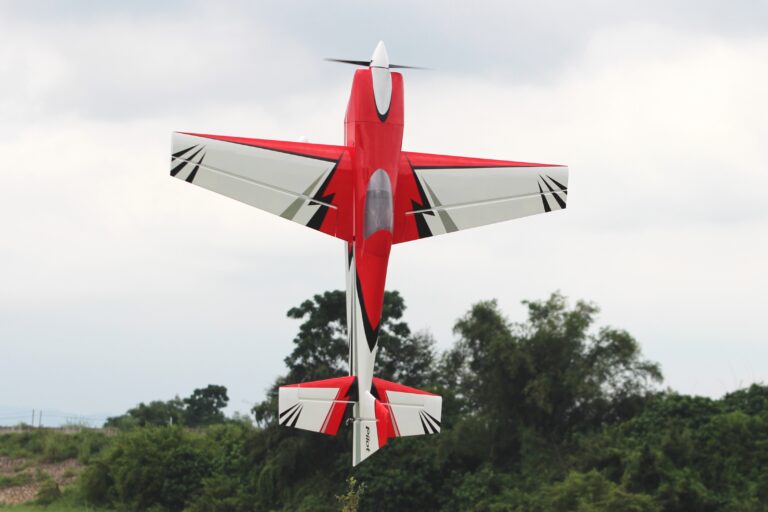

The Pilot RC EDGE 540 V3 75" is a modern 30–40cc aerobatic ARF aircraft developed by Pilot-RC for outstanding precision and 3D performance.
Inspired by the full-size EDGE 540 V3, the model combines modern aesthetics with an aerodynamically refined design, reinforced hybrid construction and Pilot-RC's quick-assembly system. The airframe is designed around popular 30–40cc engines including the DLE35, DA35 and GP38.
With its highly prefabricated construction and carefully engineered features, the EDGE 540 V3 is designed for pilots looking for a serious aerobatic platform for both precision and 3D flying.
Key Features
- 75" (1.90 m) wingspan
- Designed for 30–40cc petrol engines
- Excellent 3D performance with engines such as DLE35, DA35 and GP38
- Equivalent electric power setup can also be used
- Hybrid construction using wood and composite materials
- Specially reinforced fuselage and wings
- New patented quick-assembly system for wings and stabilizers
- Stabilizers can be assembled without tools
- Patented quick-assembly canopy system
- Highly prefabricated airframe
- Pre-installed, glued and pinned hinges
- New fuel tank position around the CG/top of the wing tube to help minimise CG changes during flight
- Middle-size elevator servo arrangement for improved adjustment
- Internally mounted cowling with no visible external screws
- Removable wings and stabilizers
- Laser-engraved motor mounting position
- Easy canister installation due to open construction
Specifications
| Specification | Details |
|---|---|
| Brand | Pilot-RC |
| Model | EDGE 540 V3 |
| Wingspan | 75" (1.90 m) |
| Length | 74" (1.89 m) with 3.5" spinner |
| Wing Area | 1,088 sq in (7,020 cm²) |
| Weight | 12.3 lb (5.6 kg) dry weight |
| Engine Range | 30–40cc |
| Recommended Engines | DLE35, DA35, GP38 |
| Type | ARF |
| Colour Scheme | Scheme 01 – Mirco Pecorari Original |
| Lead Time | 4–6 weeks |
Included Hardware
The EDGE 540 V3 75" includes:
- Complete airframe with basic accessories
- Carbon-fibre main undercarriage
- Tail-wheel assembly
- Wing tubes
- Fibreglass control horns
- Wheel pants
- Pre-installed hinges
- Pre-mounted canopy
- Fuel tank and pre-prepared fuel tubing
- Fuel dot and breather valve
- Wheels, axles and wheel pants
- Pre-prepared pull-pull wires and pushrods with ball links
- Matching 3.5" carbon-fibre spinner
Required Hardware
The following equipment is not included:
- 30–40cc petrol engine or equivalent electric power system
- 5–6 high-torque servos, minimum 20 kg
- Throttle servo
- Transmitter
- Receiver
- Propeller
- Batteries
- PowerBox/power management system
- Extension leads
- Other installation accessories as required
Servo Arrangement
- 1 × aileron servo per aileron
- Elevator servos using the recommended middle-size servo arrangement
- 1 × rudder servo
- Throttle servo
Crash Kits
Pilot-RC offers dedicated repair packages for this model:
- Landing Gear Repair Package – includes wooden parts required to repair damage around the landing gear area.
- Front Fuselage Repair Package – includes wooden parts required for repairs around the front of the model.
Note: Additional or alternative spare wood outside these specific repair packages is not available to order.
Colour Scheme
Scheme 01 – Mirco Original Scheme
Designed by renowned Italian designer Mirco Pecorari of Aircraft Studio Design.
Lead Time
SPECIAL ORDER – LEAD TIME: 4–6 WEEKS
This aircraft is supplied on order. Please allow approximately 4–6 weeks for delivery.
