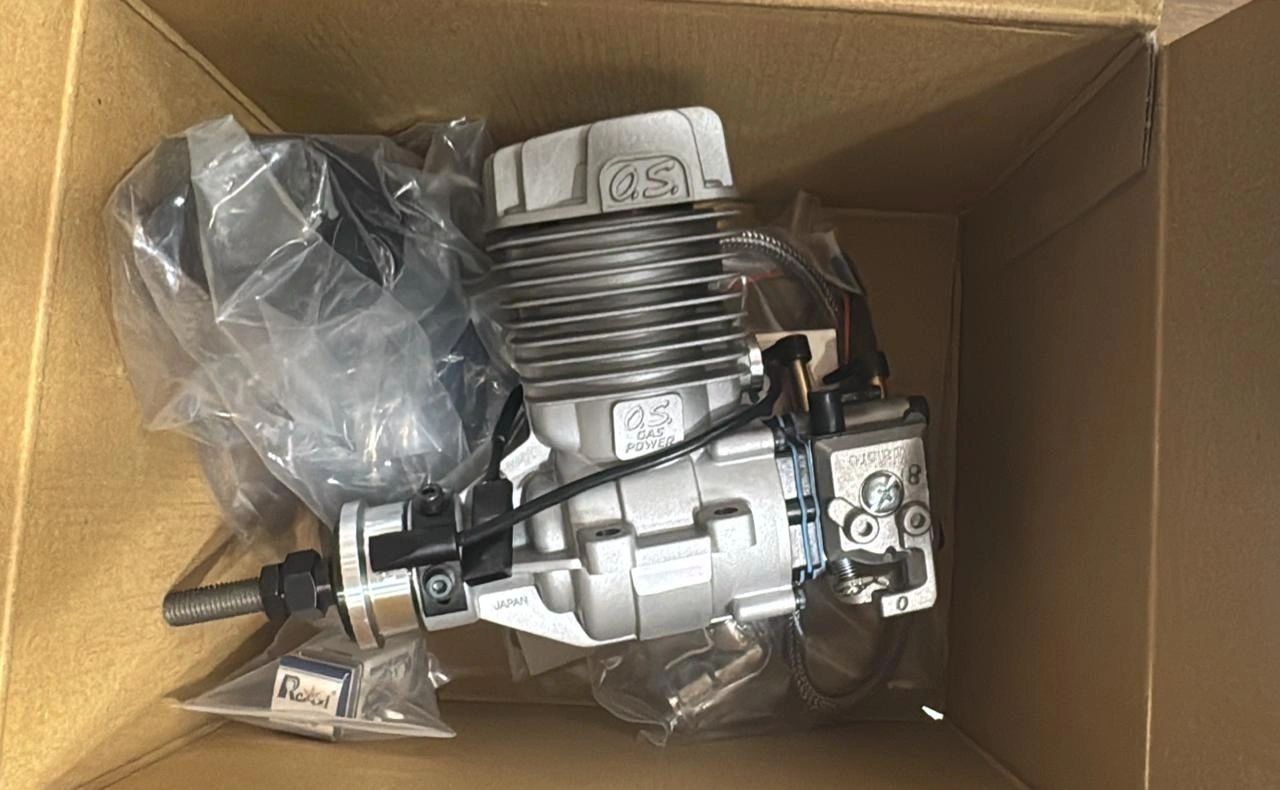

O.S. GT22 22cc Gas 2-Cycle Airplane Engine w/Muffler

₹29,999.99 ₹29,499.99

Bonanza ka BAAP offer 25 hours a day X 8 days a week X 368 days a year: Buy this engine from us and you get the following GOODDIES free:

Aluminium Spinner - 1

AeroNautical Wooden Propeller - 1

Ignition Kill Switch - 1

Gas Tubing - 1 meter

The O.S. GT22 22cc Gas 2-Cycle Airplane Engine with Muffler is a great option for fast starts, high power and amazing flight performance. Designed to work with planes that require a 2-stroke .60-.90 or 4-stroke 1.20 glow engines. The GT22 is a great choice for mild to wild builds and includes a Pitts style muffler for out of the box setup. Get the O.S. GT22 and be up and flying in no time.

Features:

Uses beam mounting for easy installation
Rear-mounted Walbro carburetor
Reinforced Pitts style muffler
Redesigned for even easier starting
Includes single prop nut with locking nut

Specifications:

Cylinders: Single

Displacement: 1.350 cu in (22.12 cc)

Bore: 1.260" (32.0mm)

Stroke: 1.083" (27.5mm)

RPM Range: 1,800 - 9,000

HP: 2.66hp (2.7ps) @ 9,000rpm

Benchmark Prop: 15x10

Prop Range: 16x8 - 17x8

Recommended Fuel: 87-93 octane gasoline

Oil Type & Content: 50:1 mix ratio 2-cycle

Crankshaft Type: Threaded

Crankshaft Threads: UNF-2A 5/16-24

Plug Type: CM-6 spark plug

Carb Type: Walbro (Rear Mounted)

Muffler Type: 2-piece aluminum

Engine Weight: 26.86oz (761.6g) (Without Muffler)

Muffler Weight: 4.68 oz (132.6g)

Ignition Weight: 3.70 oz (105 g)

Crank Case With Drive Hub Length: 5.5" (139.5mm)

Width at Mounting Tabs: 2.7" (70mm)

Height from Bottom of Mounting Tab to Top of Muffler: 3.1" (140.5mm)

Includes:

(1) O.S. GT22 2-Stroke Gas Engine
(1) Pitts Style Muffler
(1) O.S. Ignition System
(1) CM-6 Spark Plug
(1) Manual
