HiTec HS-5625MG High Speed, Metal Gear Digital Sport Servo

Here comes HiTec HS-5625MG High Speed, Metal Gear Digital Sport Servo, a product from HiTec brand. For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique M/P and metal gear train technology, the HS-5645MG will deliver powerful high speed results!

Features:

1. Most Popular High Speed Standard Digital Servo
2. Strong Three-Pole Ferrite Motor
3. Metal Gear Train with MP Gear Technology
4. Dual Ball Bearing-Supported Output Shaft
5. Standard Programmable Digital Circuit Provides Fine Resolution and Centering

Package Includes:

1 x HiTec HS-5625MG High Speed Metal Gear Digital Sport Servo

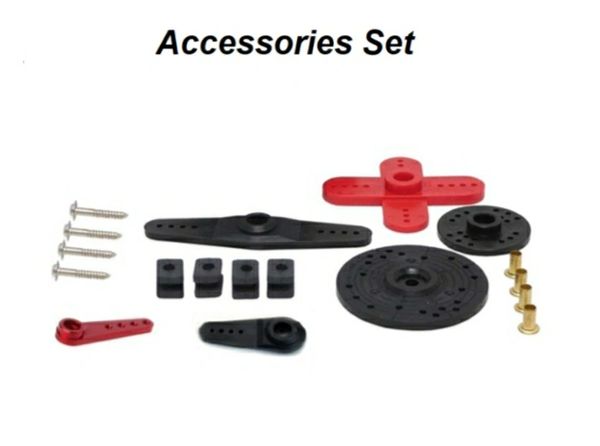

1 x Accessories Set with Applicable Horns

Operating Voltage Range (Volts DC)

4.8V ~ 6.0V

Speed (Second @ 60°)

0.17 ~ 0.14

Maximum Torque Range oz. / in.

110 ~ 131

Maximum Torque Range kg. / cm.

7.9 ~ 9.4

Current Draw at Idle

3 mA

No Load Operating Current Draw

500 mA

Stall Current Draw

2,400 mA

Dead Band Width

4 µs

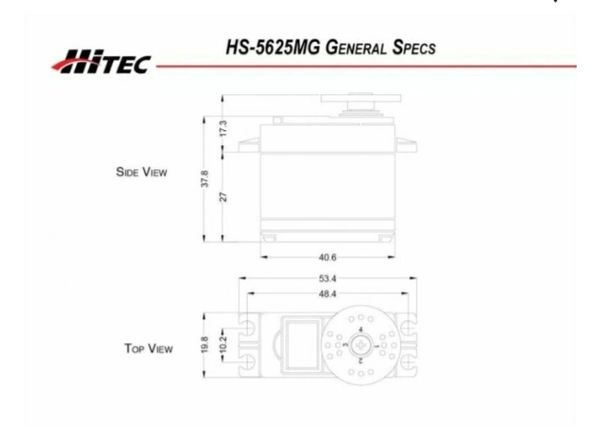

Size

1.59 x 0.77 x 1.48 (inch)
40.6 x 19.8 x 37.8 (mm)

Weight (Gram)

60
