Technical Specifications

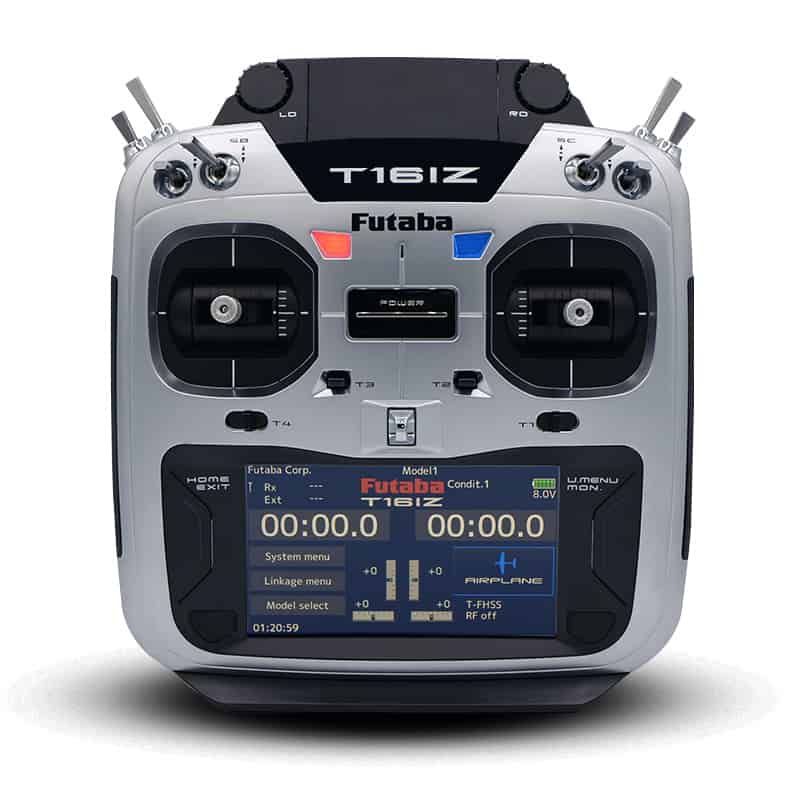

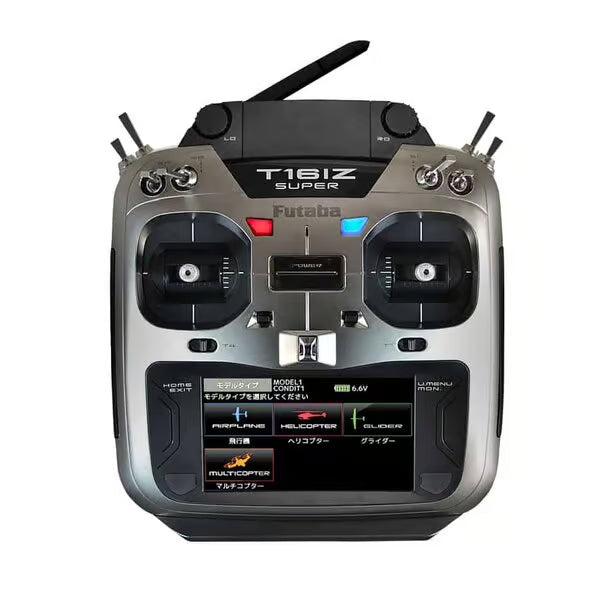

Futaba 16IZS Transmitter –  18-Channel Computer System 2-Stick, 18-Channel, FASSTest 2.4 GHz System  (01004423-1)(01004422-1)(01004420-1)(01004421-1) FEATURES FASSTEST SYSTEM: The Futaba 16IZS transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system. S.BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables. USB SIMULATOR CONTROL: The T16IZS offers USB C compatibility for simulator control when used with Windows OS Joystick function. COLOR TOUCH SCREEN LCD: T16IZS has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility. MULTI HOLDER: T16IZS Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw. Voice Telemetry: The Futaba T16IZS transmitter allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying. SECURE DATA (SD CARD): Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZS. HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH): The high capacity 2S Lithium Polymer battery gives you extended flight time. EDITING: The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you. FUNCTIONS: With the powerful internal processor. Most of the mixing functions are operated by curves which give you very precise settings and improved feel. STICK : Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation. VIBRATION FUNCTION: Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner. R7208SB: The system comes with the R7208SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication. CONTENTS YOUR FUTABA 16IZS TRANSMITTER INCLUDES THE FOLLOWING COMPONENTS: T16IZS Transmitter Air Version  includes  ratcheting  throttle Helicopter Version  includes  smooth  throttle LT2F2000B Lithium Polymer Battery and USB cable for charging Neck Strap Manual (Printed short version.  Find full version here ) FUTABA 16IZS TRANSMITTER  SPECS TRANSMITTER FREQUENCY: 2.4 GHz band OPERATING SYSTEM: 2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System POWER SUPPLY: 7.4 V LT2F2000B Lithium-polymer battery RF POWER OUTPUT: 100 mW EIRP
