Futaba 16IZ

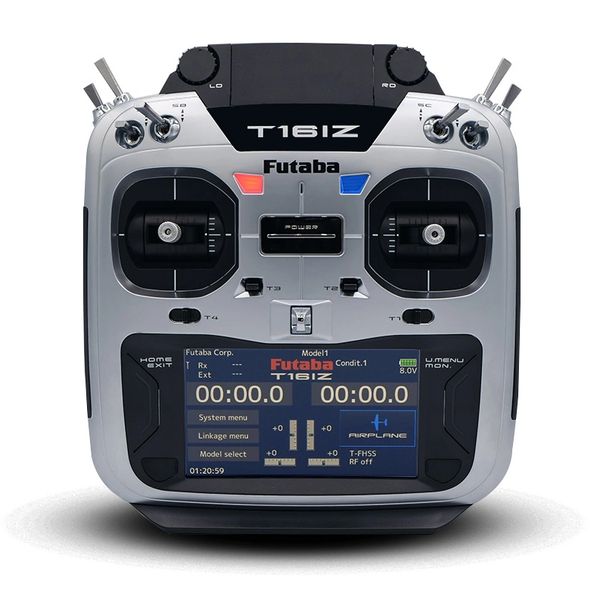

16IZ Transmitter – 18-Channel Computer System
2-Stick, 18-Channel, FASSTest 2.4 GHz System
FEATURES
FASSTEST SYSTEM:
The 16IZ transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.
S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
USB SIMULATOR CONTROL:
The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.
COLOR TOUCH SCREEN LCD:
T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
MULTI HOLDER:
T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.
Voice Telemetry:
The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.
SECURE DATA (SD CARD):
Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.
HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.
EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.
FUNCTIONS:
The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.
STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.
VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.
R7108SB:
The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.
FASSTEST SYSTEM:
The 16IZ transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.
S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
USB SIMULATOR CONTROL:
The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.
COLOR TOUCH SCREEN LCD:
T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
MULTI HOLDER:
T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.
Voice Telemetry:
The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.
SECURE DATA (SD CARD):
Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.
HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.
EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.
FUNCTIONS:
The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.
STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.
VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.
R7108SB:
The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.
CONTENTS
YOUR T16IZ (PACKAGED WITH A S.BUS RECEIVER) INCLUDES THE FOLLOWING COMPONENTS:
- T16IZ Transmitter
– Air Version includes ratcheting throttle
– Helicopter Version includes smooth throttle - R7108SB Receiver
- LT2F2000B Lithium Polymer Battery and USB cable for charging
- Neck Strap
- Manual (Printed short version. Find full version here)
TRANSMITTER SPECS
TRANSMITTER FREQUENCY:
2.4 GHz band
OPERATING SYSTEM:
2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
POWER SUPPLY:
7.4 V LT2F2000B Lithium-polymer battery
RF POWER OUTPUT:
100 mW EIRP
WEIGHT (with battery):
TBD
RECEIVER SPECS
R7108SB
SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in
WEIGHT:
12.0 g
0.42 oz
POWER REQUIREMENTS:
6.6 V LiFe Battery
CURRENT DRAIN:
75 mA
RF POWER OUTPUT:
25 mW EIRP
Compatible receivers as of 29 June2022.
- R2008GS
- R2008SB
- R2106SB
- R2001SB
- R2000SBM
- R3001SB
- R3004SB
- R3006SB
- R3008SB
- R3206SBM
- R3106GF
- R6004FF
- R6008HS
- R6014HS
- R6016HF
- R616FFM
- R617FS
- R6202SBW
- R6203SB
- R6208SB
- R6303SB
- R6303SBE
- R7003SB
- R7006SB
- R7008SB
- R7108SB
- R7014SB
*NOTE: The battery in the T16SZ transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.
TRANSMITTER SPECS
TRANSMITTER FREQUENCY:
2.4 GHz band
SYSTEM:
FASSTest18CH, FASSTest12CH, FASST MULT, FASST 7CH, T-FHSS, S-FHSS, switchable
POWER SUPPLY:
6.0 V HT5F1800B NiMH battery
FREQUENCY BAND:
2.4 GHz
RF POWER OUTPUT:
100mW EIRP
