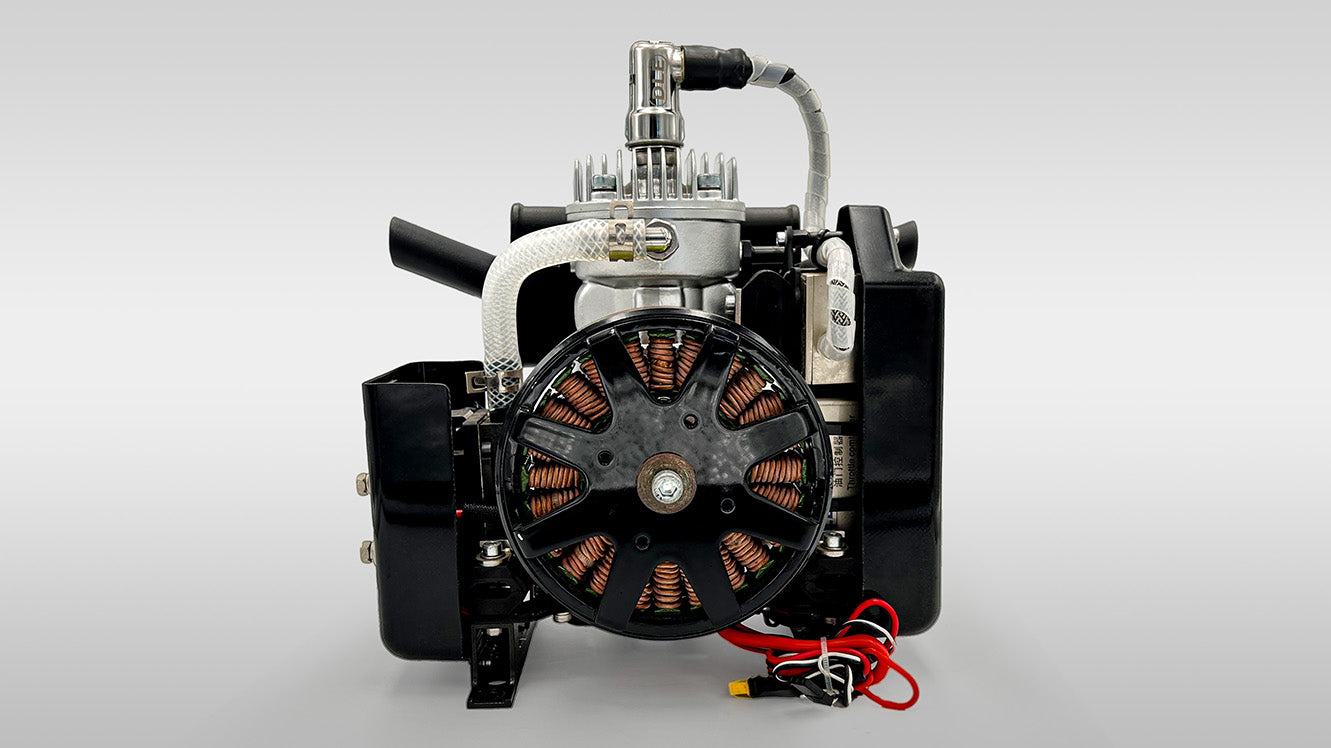

DLE Engine or motor assembly on a gray background
  • DLE Engine or motor assembly on a gray background

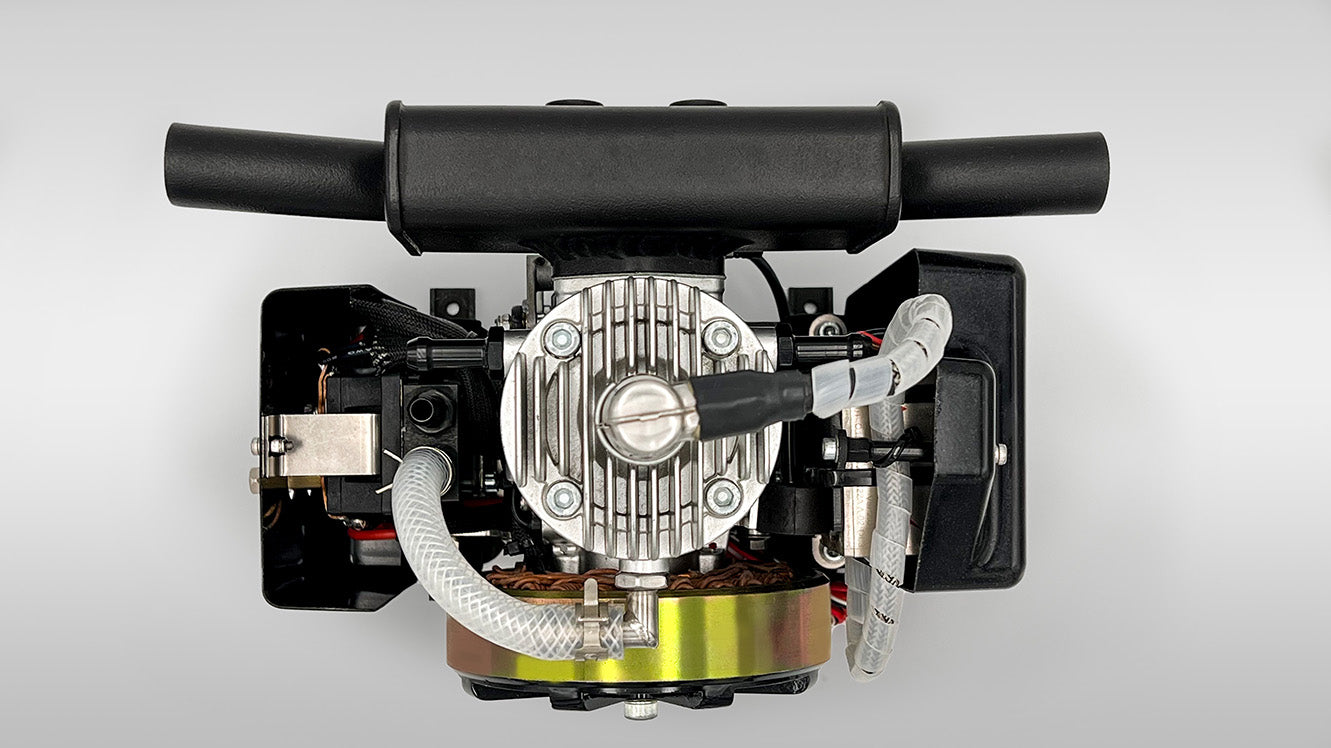

  • Close-up of DLE35HD engine or motor on a white background

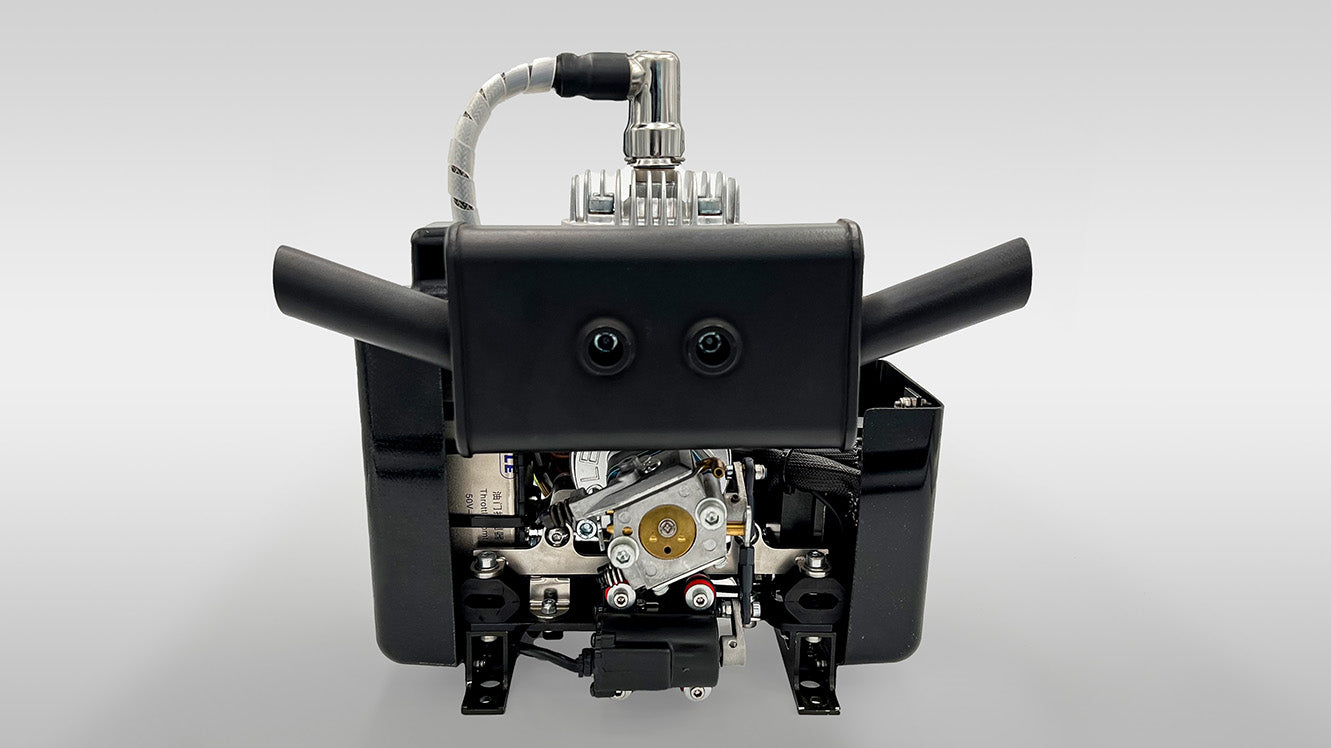

  • Close-up of DLE35HD engine with visible components on a gray background
  • DLE Engine or motor assembly on a gray background
  • Close-up of DLE35HD engine or motor on a white background
  • Close-up of DLE35HD engine with visible components on a gray background
DLE35HD Hybrid UAV Engine
Rs. 156,789.10 Rs. 157,890.10

The DLE35HD hybrid engine, which was launched in April 2022, is a single cylinder two-stroke water-cooled piston engine. The efficient water-cooled cooling mode provides a more stable working mode for the engine.The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.

parameter

  • Generator parameters:
  • Three phase permanent magnet generator
  • Voltage: ac50v to dc50v
  • Frequency: non constant frequency type, which changes with the engine speed
  • Engine parameters:
  • Single cylinder water cooling
  • Displacement : 35cm3
  • Cylinder bore × trip：38.5mm×30mm
  • Power: 3.5hp/8500 RPM power: 2.5kW (0 altitude)
  • Idle speed: 5000-6000 rpm
  • Engine weight: 3.3kg
  • Weight of cooling system; 2kg (including 800ml coolant)
