DLE-55RA Gas Rear Exhaust with Electronic Ignition

43,999.99 42,999.99
  • High performance in a compact package
  • Rear exhaust for the perfect tuned pipe setup
  • Pitts style aluminum muffler
  • Piston with re-engineered skirt for less piston weight resulting in such advantages as awesome throttle response, more power and longer engine life
  • Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise, **Ignition Sensor available separately**
  • Producing 100 more rpm than the DLE50, the DLE 55-RA comes with engine standoffs, electronic ignition, spark plug and muffler

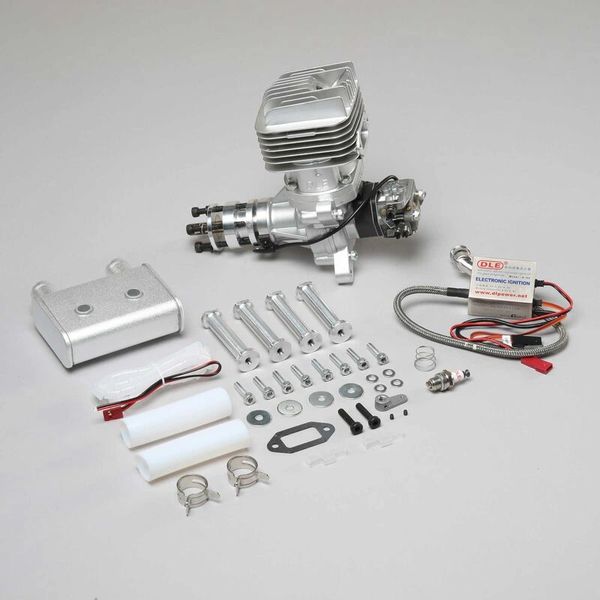

  • In The Box

    • (1) DLE 55-RA Gasoline Engine
    • (1) Electronic Ignition
    • (1) Pitts Muffler
    • (1) DLE CM6 Spark Plug
    • (4) Engine Standoffs with Mounting Hardware
    • (1) Integrated Choke Rod Guide
    • (1) Rear-mounted Carb
    • (1) Product manual

    Needed to Complete

      • Gasoline with at least 87 octane rating
      • 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
      • 4.8 - 12V battery for ignition (separate receiver style pack can be used)
      • **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
      • Propeller and field equipment
      • Bore 1.76" (45mm)
        Crankshaft Type Threaded
        Power Type Gas
        Plug Type NGK CM6
        Stroke 1.37" (35mm)
