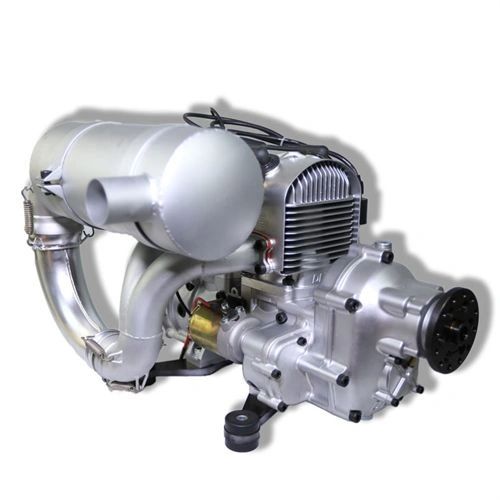

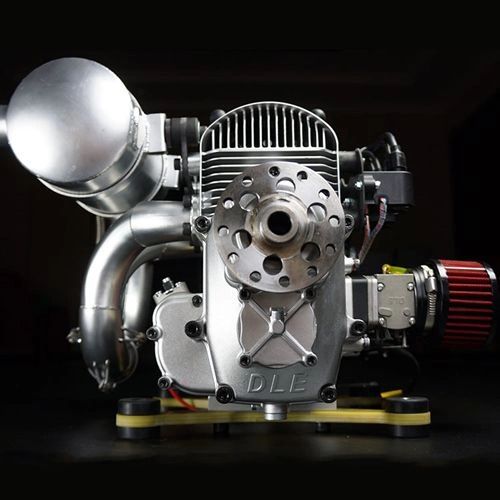

DLE 430 is a two-cylinder two-stroke engine , can be used for unmanned aerial vehicles

509,999.99 499,499.99

DLE 430 is a two-cylinder two-stroke engine , can be used for unmanned aerial vehicles

Diameter:70mm
  Stroke:56mm
  Displacement:430.8cc
  Compression ratio:Theoretical 11∶1 effective 6.5∶1
  Speed Reducing ratio:2.55
  Power:42HP at 6800 RPM
  Static thrust:110kg
  Maximum RPM:7000 RPM
  Idle speed:1000 RPM
  Spark plug type:14mm DLE-8
  Spark plug gap:0.6MM
  Carburetor:DLE Self-priming
  Fuel:Gasoline 93#  97#
  Fuel mixed oil:2T FD full synthesis
  Oil mixture ratio:50:1
  Lubrication oil of gear-box:Gear oil  , 85W-140EP API-GL5    GL6  SAE  140 EP
  Ignition system:Double set DC capacitor discharge ignition,12v power supply , 5W/piece
  Generated power:Permanent magnet generator  14.5V  90W
  Starting motor current:35A
  Rotation direction:Clockwise
  Radiator:Fan cooling
  Weight:Main engine : 27kg   Exhaust : 4.1kg   Totally : 32.25 kg
  Recommended Propeller: 1.5M Variable pitch carbon-fiber propeller
