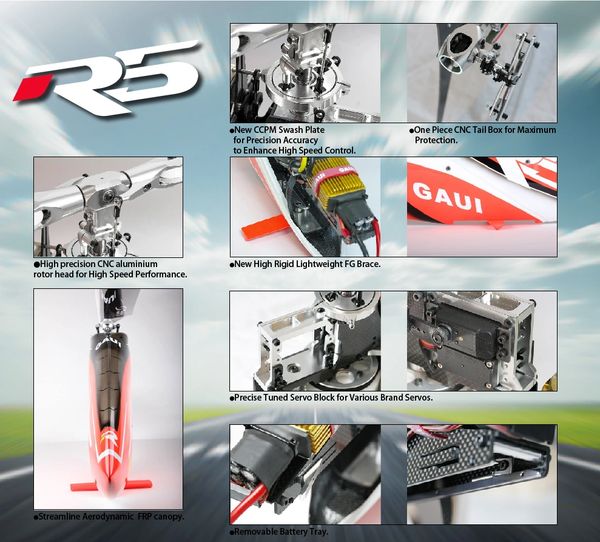

  • Gaui R5 Combo Kit

    89,999.99 85,009.10
    This item is out of stock

    Product Description

    Content:
    R5 Basic Kit x1 set
    HALO CF main blades 580L CFB(B-SURFACE) x1set
    HALO CF Tail Rotor Blade Set(80mm) CFB(B-SURFACE) x1set
    GUEC GM-350S Brushless Motor (500KV) x1
    Stand(for R5) x1
    We call these our B surface blades.
    During manufacture occasionally the logo and graphical design finish is not as 100% perfect but in no way does that slight visual imperfection affect their use in anyway

    R5 SPEC-02



    Specifications:

    NX7 Dimension

    ● Overall Length : 1195 mm
    ● Main Rotation Diameter: 1301~ 1337 mm
    ● Main blade length: 580 ~ 598 mm
    ● Overall Height: 332 mm
    ● Overall Width: 90 mm
    ● Tail Blade Length: 82~95mm
    ● Tail Rotation Diameter: 238 ~ 258 mm
    ● Total weight: 2100g ±3% (kit only, not including electronics)
    Drive Gear Ratio:7.82 : 1 : 4.67

    R5-Motor
    Suitable length of motor shaft for R5 — 41mm~42mm

    Optional Accessory:

    Standard size CCPM servos * 3
    Standard size tail servo * 1
    3-Axis Gyro * 1pc
    LiPo Battery : max size: 340 x 46 x 48 mm *1
    ESC: (recommended) 160A ESC

    Tools and Equipment for Assembly:

    *Transmitter(7-channel or more,helicopter system)
    *Receiver(7-channel or more)
    *1.5 mm Hexagon Screw Driver
    *2 mm Hexagon Screw Driver
    *2.5 mm Hexagon Screw Driver
    * Philips Screw Driver
    * Lubricant / one-way bearing grease
    * Needle-nosed pliers
    * General thread lock

    Tax extra as applicable.
