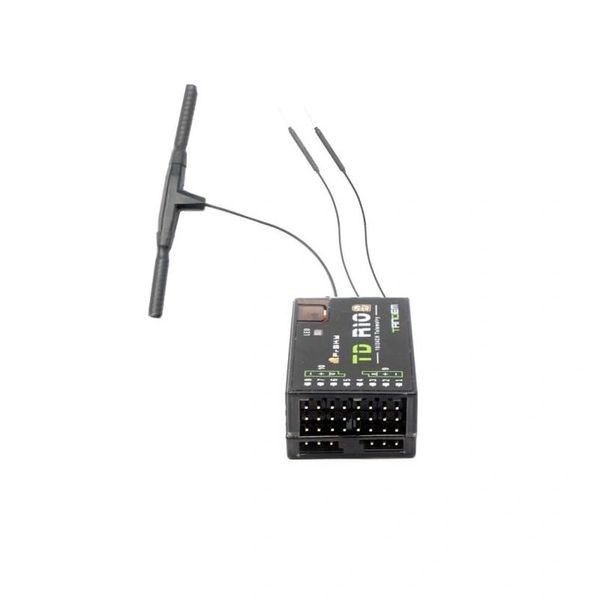

FrSky TD R10 2.4GHz 900M Dual Band Receiver w/ Antennas

The FrSky TD R10 2.4GHz 900M Dual Band Tandem Receiver w/ Antennas is unlike any other FrSky 2.4Ghz or 900Mhz receiver – the TD R10 works simultaneously at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only low latency signal and long-range control, but also benefit from the enhanced level of high reliability and anti-interference performance. The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem receivers through a built-in black box module. The configurable 10-channel ports are a big feature of TD R10, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup.

Features:

1. 10 Configurable Channel Ports: CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In and CP2-10: PWM / SBUS Out / FBUS / S.Port
2. Supply current range（every single port:）Instantaneous current:5A/ Continuous current:3A
3. Triple antenna design for multi-directional coverage
4. Simultaneous working dual-band TD mode
5. Long control range (up to 50KM – 100KM)
6. 4ms Race Mode with Telemetry
7. Over-The-Air (OTA) FW update
8. Built-in voltage sensor
9. Black Box function

10. Specifications:

    1. Antenna: Triple 2.4G/900M Antenna (External 2.4G antenna (IPEX1) and External 900M antenna (IPEX1)
    2. Compatibility: Tandem series transmitter & TD protocol capable RF module
    3. Dimension: 46.5 x 26.3 x 14.7mm (L x W x H)
    4. Operating Current: ≤180mA@5V
    5. Operating Voltage: 3.5-10v DC
    6. Frequency: 2.4GHz & 900MHz
    7. Weight: 16.6g

    ---

    Packages Includes:

    1 x FrSky TD R10 2.4GHz 900M Dual Band Receiver w/ Antennas
