DLE DLE-222 FLAT FOUR GASOLINE ENGINE

DLE DLE-222 Flat Four Gasoline Engine

Big Power for Big Aircraft

At 21.5 horsepower, the DLE-222 has more than enough power to push your plane through the air. And with an all-up weight of just over twelve pounds, it has the power-to-weight balance to make the most of it. Dual carbs help you fine tune it, sealed bearings keep it running smoothly and two mufflers keep it down to a dull roar. And for all you get — including mufflers, mount, standoffs and a 6-bolt prop hub — the value-to-price ratio is impressive, too.

Specifications:

Displacement: 13.6 cu in (222.5 cc)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 12.37 lb (5.61 kg)
RPM Range: 1,000-7,500
Output: 21.5 hp @ 7,500 rpm

Requires: Gasoline, oil, two ignition batteries & propeller

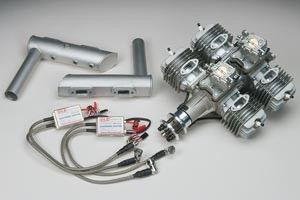

Includes: dual electronic ignition, 2 mufflers, 4 spark plugs, gaskets, bolts, machined aluminum standoffs, 6-bolt prop hub, throttle arm extension, mount & mounting template

Suggested Propellers: 32x10, 32x12 & 34x10

• Tax extra as applicable
