DLE-170 Integrated Starter+Generator+EFI Version
₹549,999.99
₹544,999.99
Free Shipping!

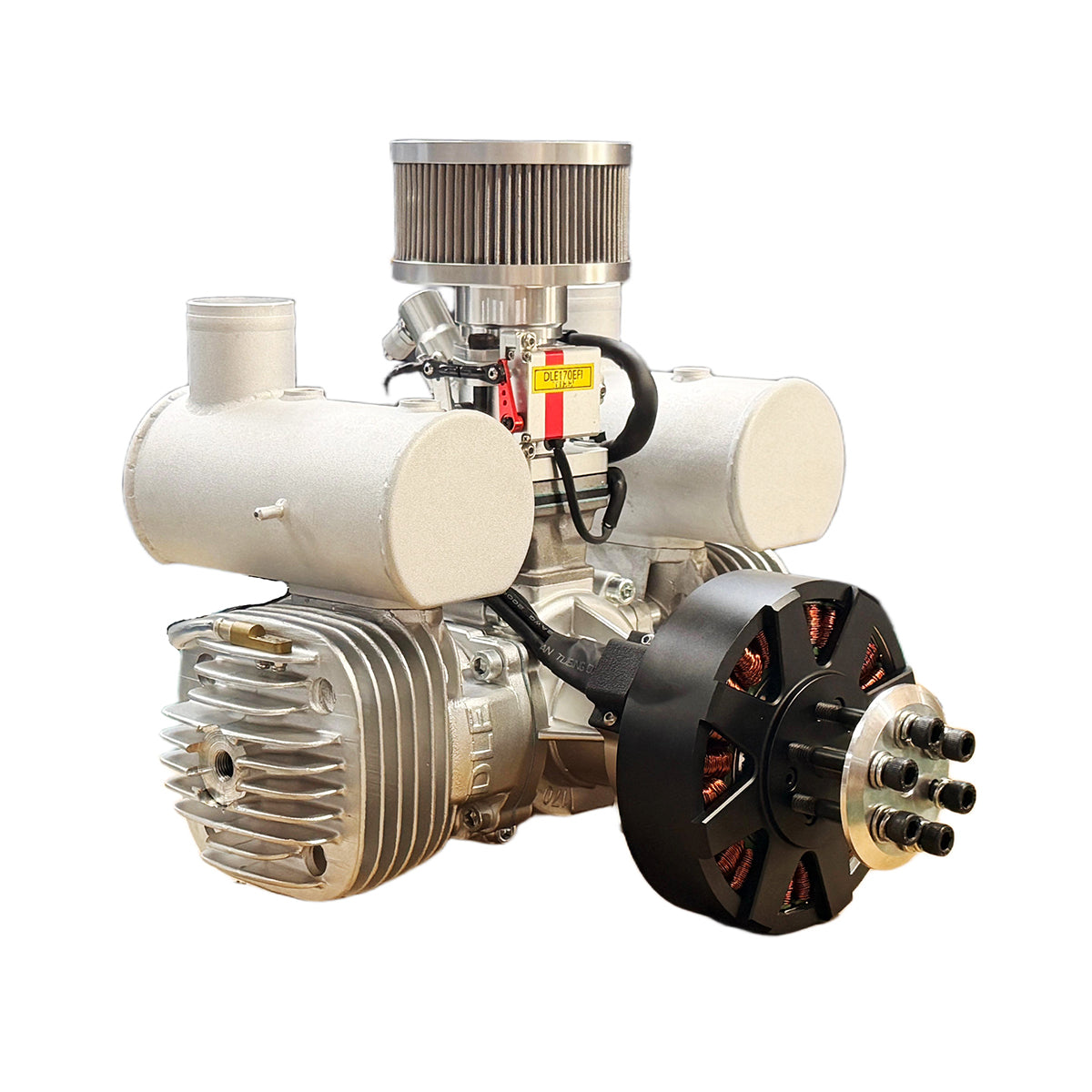

DLE-170 Integrated Starter+Generator+Electronic Fuel Injection Version Engine
System overview
The DLE170 EFI provides drones with increased reliability and power while addressing the shortcomings commonly found in two-stroke engines. The newly designed fuel pump, with self-priming capability, adopts closed-loop pressure control to precisely control the fuel pressure without returning to the fuel tank. The DLE170 EFI incorporates the latest engine technology from EFI and DLE Engine. Provide RS232 communication protocol to obtain engine running data in real time.
Package includes:
EFI ECU
Self-priming fuel pump
CDI model
Wire Harness
Isolation Mount
Specification:
Power: 17.5HP/8500rpm
Static thrust: 35kg/100m height
Static thrust: 31.5kg/1800m height
Recommended propeller: 30x10; 30x12; 32x10;
Displacement: 170cm3
Lubrication ratio: 40:1
Weight (engine with air intake): 4.1kg
Weight (ECU): 110g
Weight (fuel pump): 170g *2
Voltage: 12V
Power Consumption: 1 Amp peak, 1 hour / 1,000mAh
Temperature range: -20° - 50° C
The DLE170 EFI provides drones with increased reliability and power while addressing the shortcomings commonly found in two-stroke engines. The newly designed fuel pump, with self-priming capability, adopts closed-loop pressure control to precisely control the fuel pressure without returning to the fuel tank. The DLE170 EFI incorporates the latest engine technology from EFI and DLE Engine. Provide RS232 communication protocol to obtain engine running data in real time.
Package includes:
EFI ECU
Self-priming fuel pump
CDI model
Wire Harness
Isolation Mount
Specification:
Power: 17.5HP/8500rpm
Static thrust: 35kg/100m height
Static thrust: 31.5kg/1800m height
Recommended propeller: 30x10; 30x12; 32x10;
Displacement: 170cm3
Lubrication ratio: 40:1
Weight (engine with air intake): 4.1kg
Weight (ECU): 110g
Weight (fuel pump): 170g *2
Voltage: 12V
Power Consumption: 1 Amp peak, 1 hour / 1,000mAh
Temperature range: -20° - 50° C
- Tax extra as applicable
