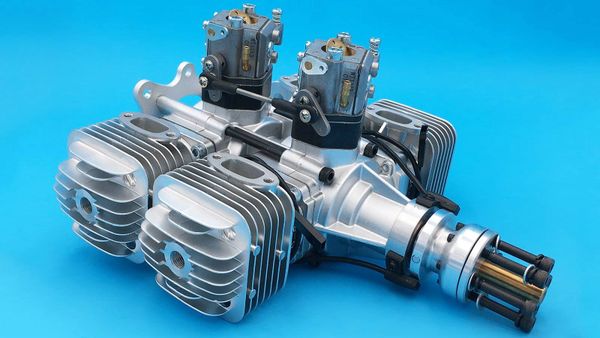

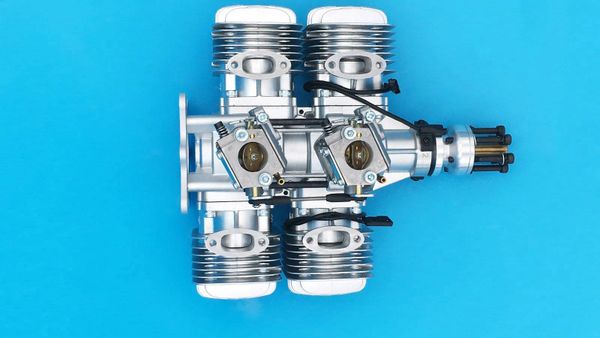

DLE 120T4 Four Cylinder Gasoline Engine

DLE120T4 120cc four cylinder gasoline aeromodel engine, launched in May 2020, is a four cylinder two-stroke piston engine, which is currently the smallest displacement four cylinder aeromodel engine of DLE. It runs on clean 92 unleaded gasoline and above, and the ratio of fuel to engine oil is 30:1.

Performance: 12HP/7500rpm
Idle Speed: 1200rpm/min
Static Thrust:26.5kg / Altitude100 meters
Propeller: 27×10, 26×12, 28×10
Spark Plug Type:NGK, CM6
Exhaust Amount: 122 ccm
Diameter × stroke: 36mm×30mm
Compression Ratio: 7.1：1
Lubrication Ratio: 30:1
Weight of Main Engine:2960g
Weight of Exhaust:500g
Weight of lgnition:140g
Lgnition voltage:4.8v-8.4v
