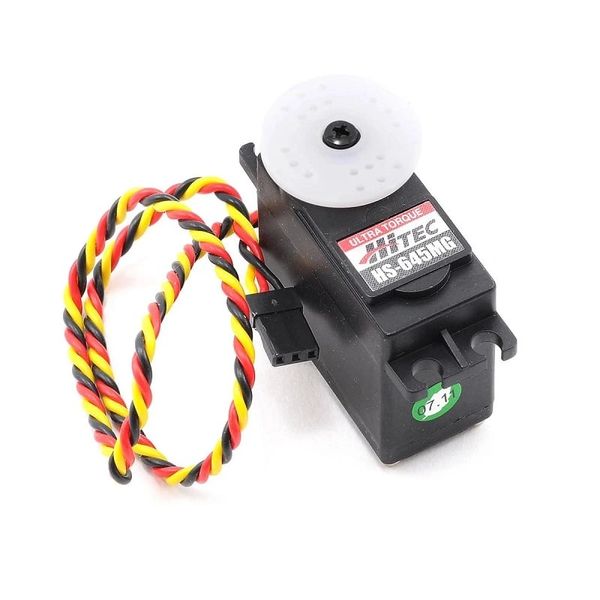

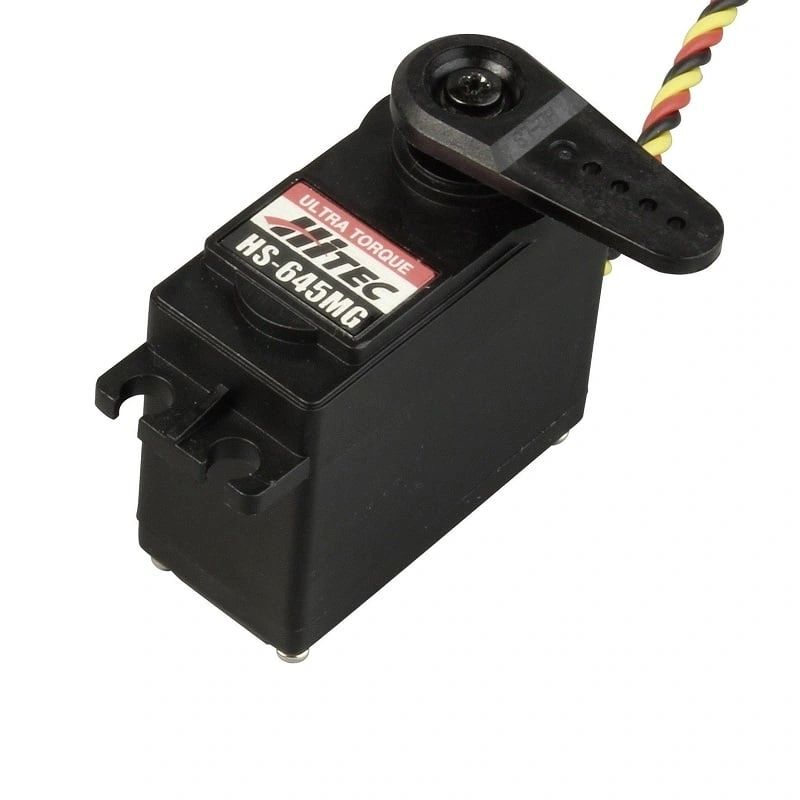

  • HiTec HS-645MG High Torque, Metal Gear Premium Sport Servo

    3,099.99 2,999.99
    Free Shipping!
    1. Top Selling High Torque Metal Gear Servo
    2. Strong Three-Pole Ferrite Motor
    3. Heavy Duty Metal Gear Train Featuring our Revolutionary Metal/Plastic First Gear (MP Gear)
    4. Dual Ball Bearing-Supported Output Shaft
    5. Here comes HiTec HS-645MG High Torque Metal Gear Premium Sport Servo, a product from HiTec brand. The powerful HS-645MG is one of Hitec’s most popular servos. It’s the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Featuring our unique M/P and metal gear train technology, the HS-645MG offers one of the strongest gear trains available in any servo.
    6. Note:

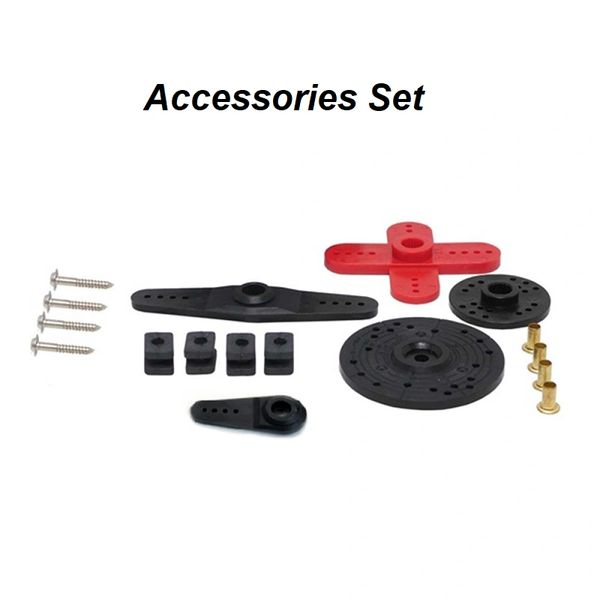

      1. Accessories wheel & horn set is usually black in colour.
      2. Please note that the colour & the accessories set can be different from the image shown depending on the availability.
      3. Tax extra as applicable
      4. HS-645MG Servo Specifications

        Performance Specifications
        Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
        Speed (Second @ 60°) 0.24 ~ 0.20
        Maximum Torque Range oz. / in. 107 ~ 133
        Maximum Torque Range kg. / cm. 7.7 ~ 9.6
        Current Draw at Idle 9.1 mA
        No Load Operating Current Draw 450 mA
        Stall Current Draw 2,500 mA
        Dead Band Width 8 µs

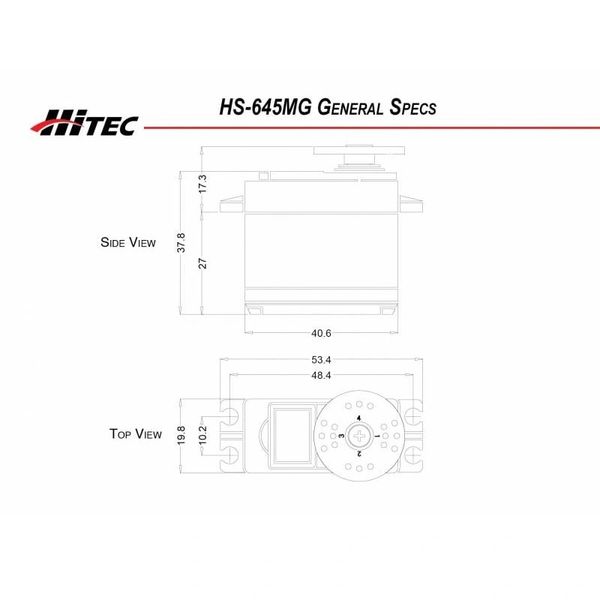

        Physical Specifications
        Dimensions (Inches) 1.59 x 0.77 x 1.48
        Dimensions (Metric) 40.6 x 19.8 x 37.8
        Weight (Ounces) 1.94
        Weight (Gram) 55.2
        Circuit Type HT7003 Analog SMT
        Motor Type 3 Pole Metal Brush Ferrite
        Gear Material Metal
        Bearing Type Dual Ball Bearing
        Output Shaft (type / Ømm) Standard 24
        Case Material Plastic
        Dust / Water Resistance N / A
        Connector Gauge (AWG) / Strand Count 22 / 60
        Radio Control Applications
        Parkflyer N / A
        Sport Plane 12-15 lbs.
        Sailplane 2 meters and up
        3D Performance 12-15 lbs.
        Scale 12-15 lbs.
        Electric Helicopter N / A
        Gas Helicopter N / A
        On Road 1/10th
        Monster Truck 1/10th
        Buggies 1/10th
        Truggies 1/10th
        Short Course / Truck 1/10th
        Crawlers 1/12th
        Sail Boat =>1M+ & Scale
        Power Boat 1/10th
